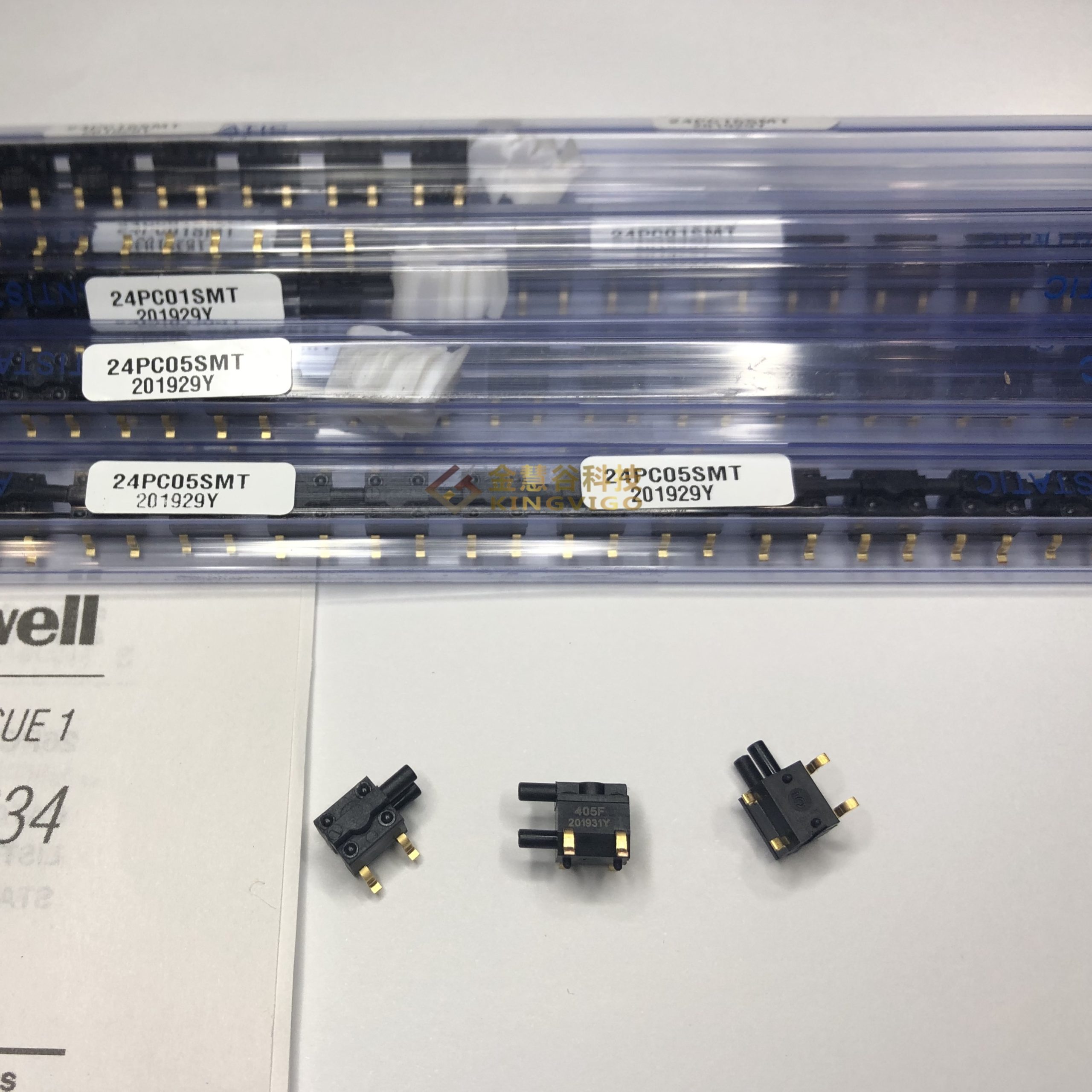

Streamline your compact circuit architecture with the high-performance Honeywell 24PC05SMT board-mount pressure sensor. Part of the specialized 24PC SMT family, this component features a micromachined silicon sensing die to deliver repeatable wet-to-wet differential, gage, or vacuum measurement across a 5.0 PSI pressure range.
While older layouts like the 24PCFFA6G architecture utilize larger through-hole pins, the 24PC05SMT profile adopts a low-profile surface mount footprint. This miniature design saves crucial board real estate and fits alongside modern automated pick-and-place components. Its twin axial barbless fluid ports accept liquid or gas media on both channels simultaneously. Operating on an uncompensated Wheatstone bridge grid, it outputs a raw 0 mV to 115 mV analog signal, allowing hardware developers full flexibility to design dedicated amplification circuits.
Key Technical Parameters:
- Brand: Honeywell
- Model Number: 24PC05SMT
- Rating Range: Plus or minus 5.0 PSI max
- Package Case: 4-SMD surface mount style
- Port Configuration: Dual straight barbless tube ports (1.88mm)
- Output Type: Unamplified ratiometric millivolt signal
- Overpressure Safety: 20 PSI maximum overload ceiling
The rugged 24PC05SMT framework is widely incorporated into medical ventilators, chemical flow indicators, and compact environmental monitoring cabinets. It represents an ideal electronic alternative for scaling down standard 24PCFFA6G systems into streamlined, automated product assemblies.
