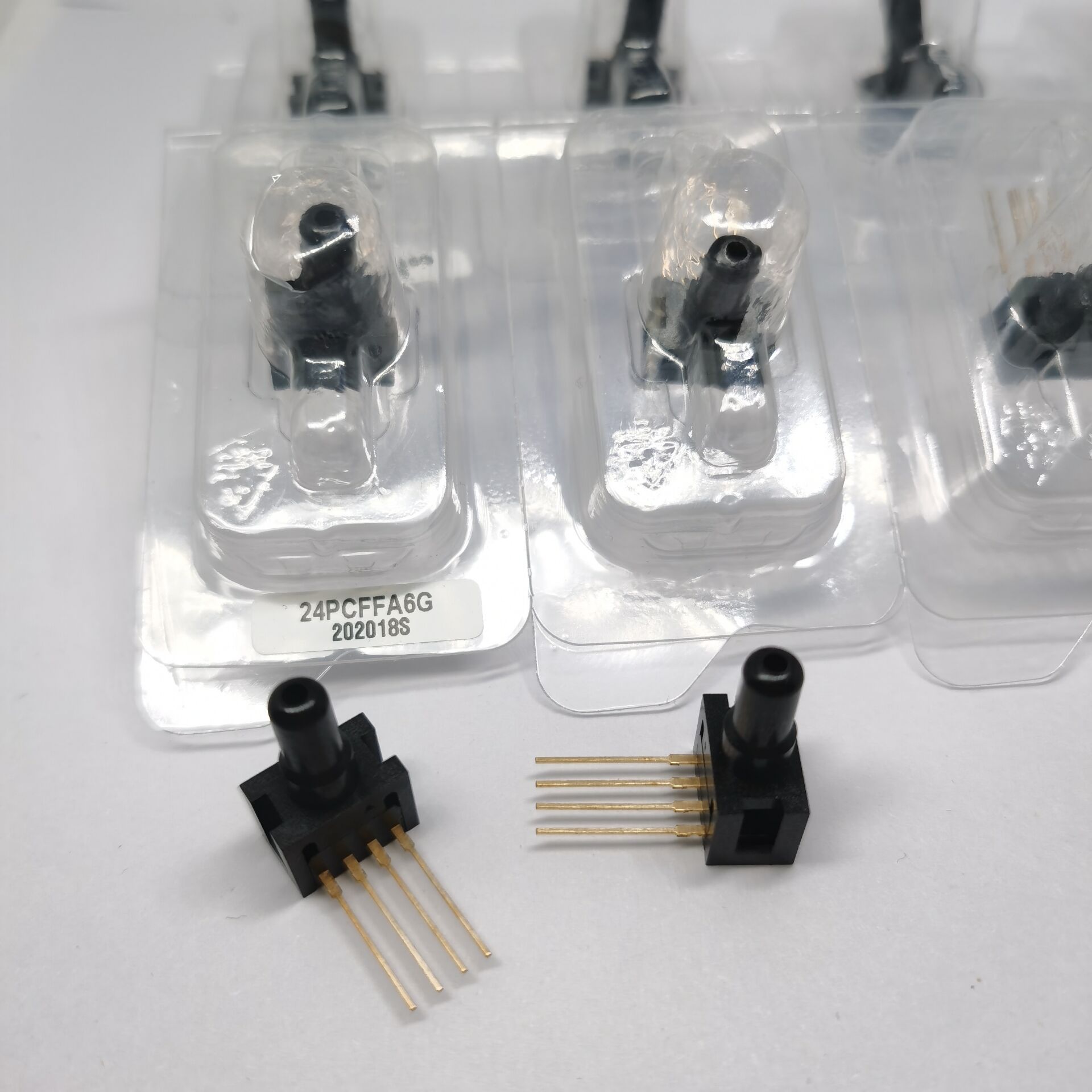

Enhance your industrial and medical instrumentation with the Honeywell 24PCFFA6G pressure sensor. As part of the trusted 24PC Series, this piezoresistive silicon sensor delivers high precision and exceptional reliability in a compact, lightweight footprint.
The 24PCFFA6G is engineered to measure compound and gage pressure with a working range of up to 100 PSI. It utilizes an uncompensated and unamplified Wheatstone bridge circuit, allowing design engineers maximum flexibility to customize their own signal conditioning and amplification hardware.
Key Technical Specifications:
- Manufacturer: Honeywell
- Part Number: 24PCFFA6G
- Pressure Range: Plus or minus 100 PSI (Compound / Gage)
- Operating Voltage: 10 VDC to 12 VDC excitation
- Output Signal: 0 mV to 225 mV (Unamplified millivolt output)

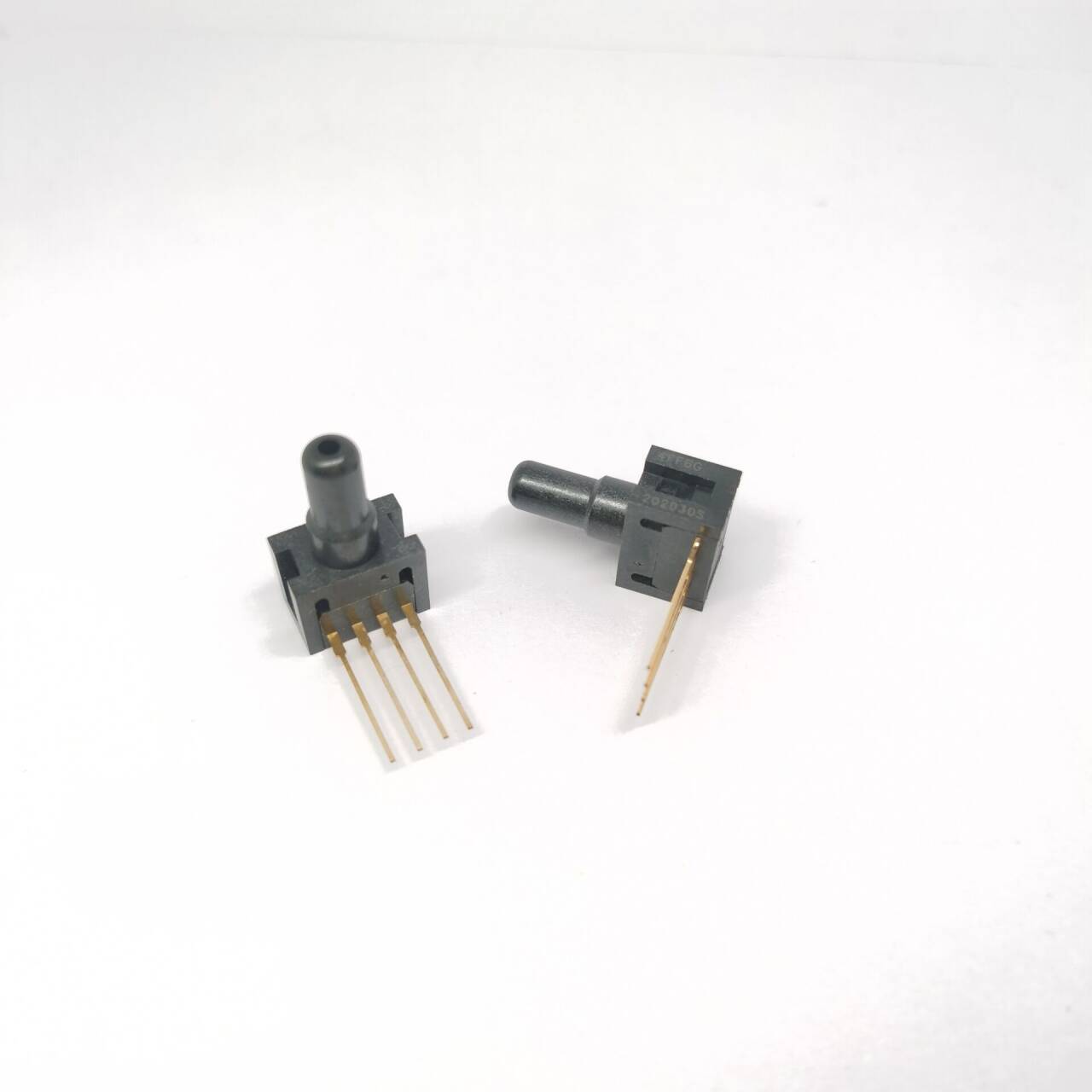

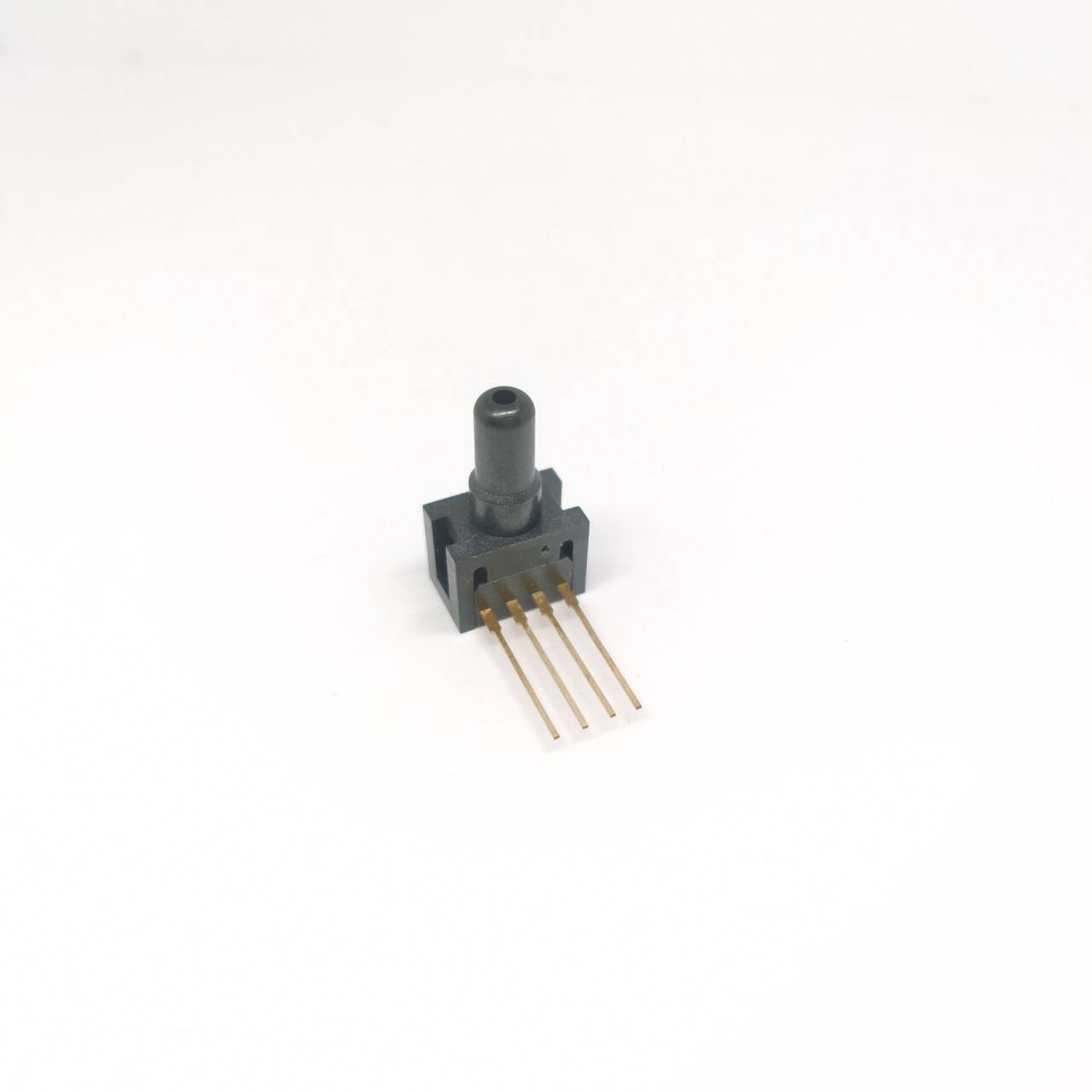

- Package Style: 4-SIP Module (Through-hole mount with 4 pins)
- Port Type: Male 0.2 inch (5mm) straight barbless tube port
- Media Compatibility: Suitable for non-corrosive gases and liquids
- Operating Temperature: -40 degrees Celsius to 85 degrees Celsius
Common Applications:
Due to its proven ruggedness and accuracy, the 24PCFFA6G is widely adopted in medical breathing machines, oxygen concentrators, environmental control systems, pneumatic controls, and various fluid pressure monitors. Its specialized port design ensures a secure, leak-free connection in low-profile printed circuit board configurations.
Due to its proven ruggedness and accuracy, the 24PCFFA6G is widely adopted in medical breathing machines, oxygen concentrators, environmental control systems, pneumatic controls, and various fluid pressure monitors. Its specialized port design ensures a secure, leak-free connection in low-profile printed circuit board configurations.
Whether you are upgrading existing electronic test equipment or prototyping a new industrial automation device, the 24PCFFA6G brings Honeywell-grade quality to your board-level architecture.
