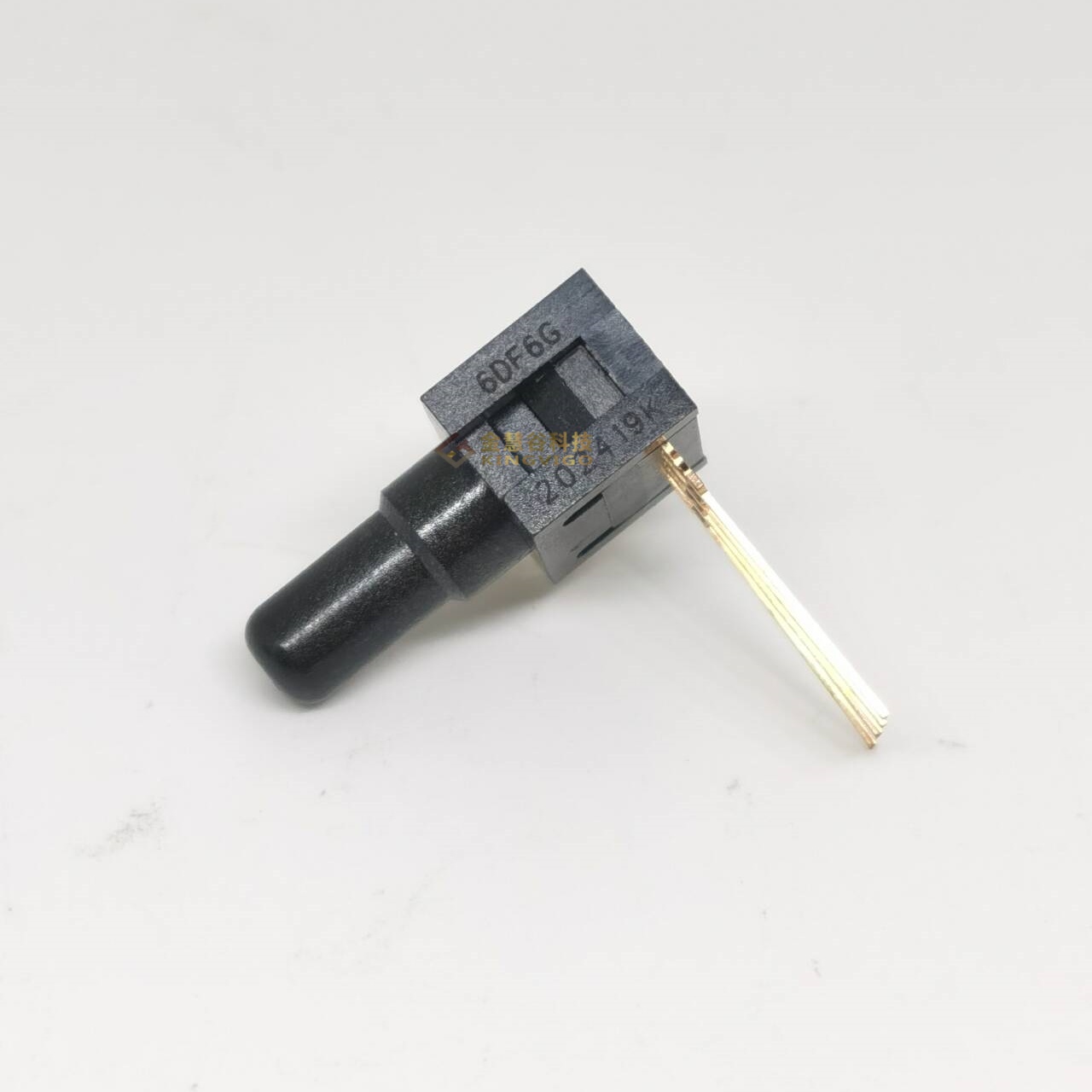

Optimize your intermediate fluid systems and specialized pneumatic control loops with the authentic 26PCDFA6G board-level pressure sensor. This active piezoresistive component is specifically calibrated to monitor standard positive gauge pressure relative to ambient atmospheric conditions. Utilizing an advanced micromachined silicon Wheatstone bridge, it translates system pressures into an inherently linear, unamplified millivolt voltage for direct micro-controller calibration. The single straight axial port ensures a simplified push-on mechanical coupling to flexible tubing, while the traditional 1×4 SIP vertical layout provides excellent mechanical grounding and reliable electrical connection on printed circuit boards.
Technical Specifications:
- Operating Pressure: 0 to 30 psi (intermediate gauge reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Internal Seal Material: High-grade fluorosilicone elastomer
- Port Style: Single straight axial barbless configuration
- Termination Style: Through-hole PC pins (standard 4-pin SIP)
- Compensated Range: 0°C to 50°C for exceptional zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Medical respiratory equipment and chemical diagnostic monitors
- Liquid level tracking in intermediate water tanks and industrial vats
- HVAC filter restriction indicators and medium-pressure pneumatic machinery
