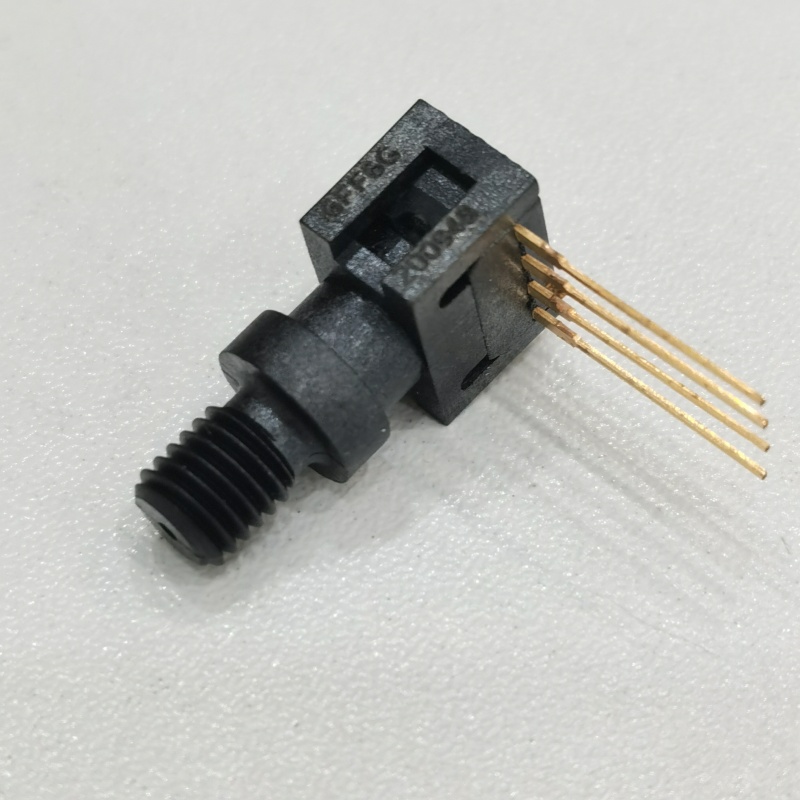

Optimize your intermediate fluid systems and specialized pneumatic control loops with the authentic 26PCFFM6G board-level pressure sensor. This active piezoresistive component is specifically calibrated to monitor standard positive gauge pressure relative to localized ambient atmospheric conditions. Utilizing an advanced micromachined silicon Wheatstone bridge, it translates system pressures into an inherently linear, unamplified millivolt voltage for direct micro-controller calibration. The unique M5 metric threaded single port ensures a secure, leak-free mechanical coupling to industrial fittings without bulky adaptors, while the traditional 1×4 SIP vertical layout provides excellent mechanical grounding and reliable electrical connection on printed circuit boards.
Technical Specifications:
- Operating Pressure: 0 to 100 psi (intermediate gauge reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Internal Seal Material: High-grade fluorosilicone elastomer
- Port Style: Single M5 x 0.8 metric threaded configuration
- Termination Style: Through-hole PC pins (standard 4-pin SIP)
- Compensated Range: 0°C to 50°C for exceptional zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Industrial pneumatic machinery and machine line diagnostics
- Liquid level tracking in pressurized water tanks and storage vats
- HVAC filter restriction indicators and threaded pneumatic manifolds
