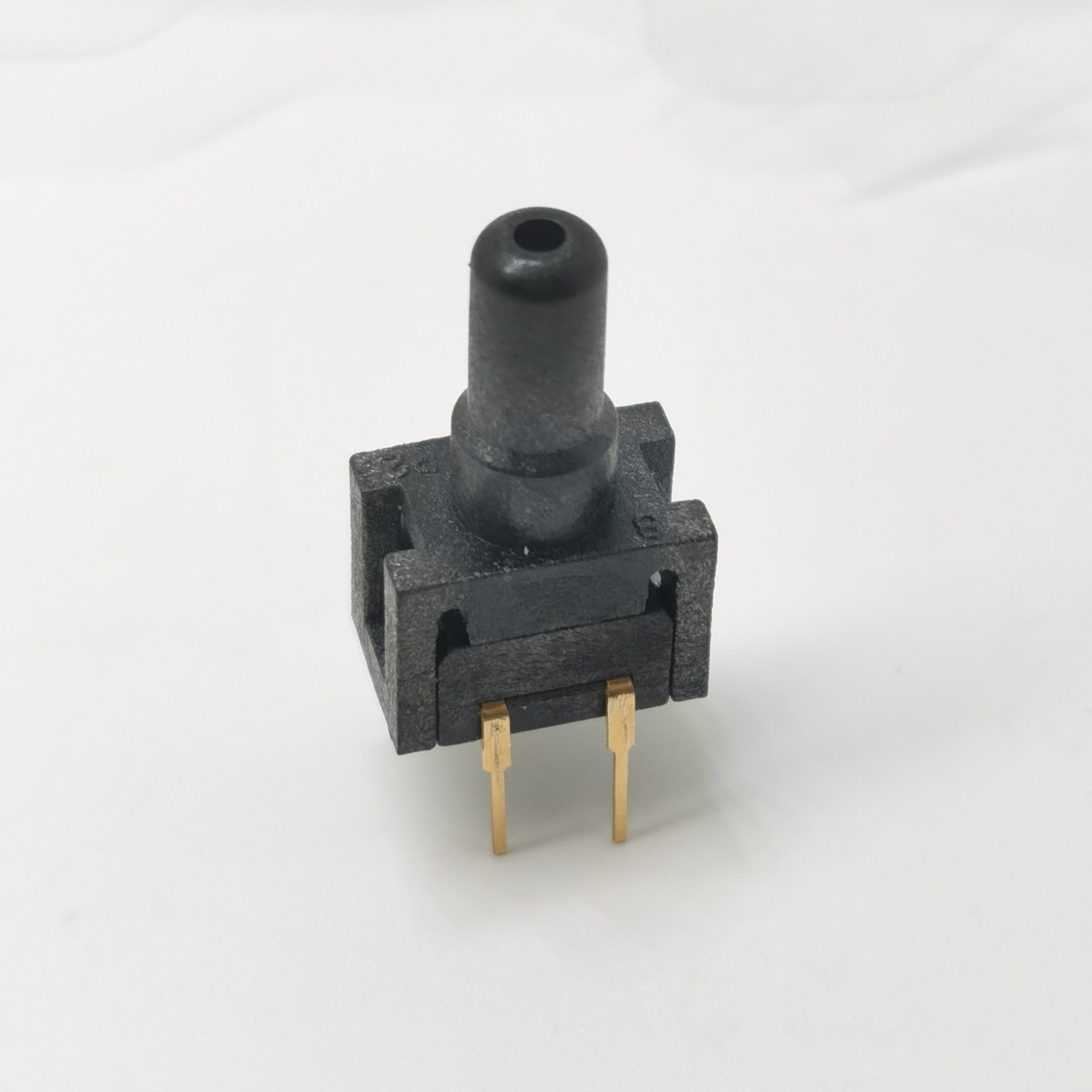

Optimize your localized fluid systems and specialized pneumatic control loops with the authentic 26PCGFA2G board-level pressure sensor. This active piezoresistive component is specifically calibrated to monitor high-range positive gauge pressure relative to ambient atmospheric conditions. Utilizing an advanced micromachined silicon Wheatstone bridge, it translates system pressures into an inherently linear, unamplified millivolt voltage for direct micro-controller calibration. The single straight axial port ensures a simplified push-on mechanical coupling to flexible tubing, while the distinctive 4-pin 2×2 DIP package provides excellent space savings and rigid grounding on printed circuit boards.
Technical Specifications:
- Operating Pressure: 0 to 250 psi (high range gauge reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Internal Seal Material: High-grade fluorosilicone elastomer
- Port Style: Single straight axial barbless configuration
- Termination Style: Through-hole PC pins (compact 2×2 DIP layout)
- Compensated Range: 0°C to 50°C for exceptional zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- High-pressure air compressor monitoring and tank regulation
- Heavy pneumatic machinery networks and plant manufacturing lines
- Industrial factory automation and small-footprint pressure monitoring
