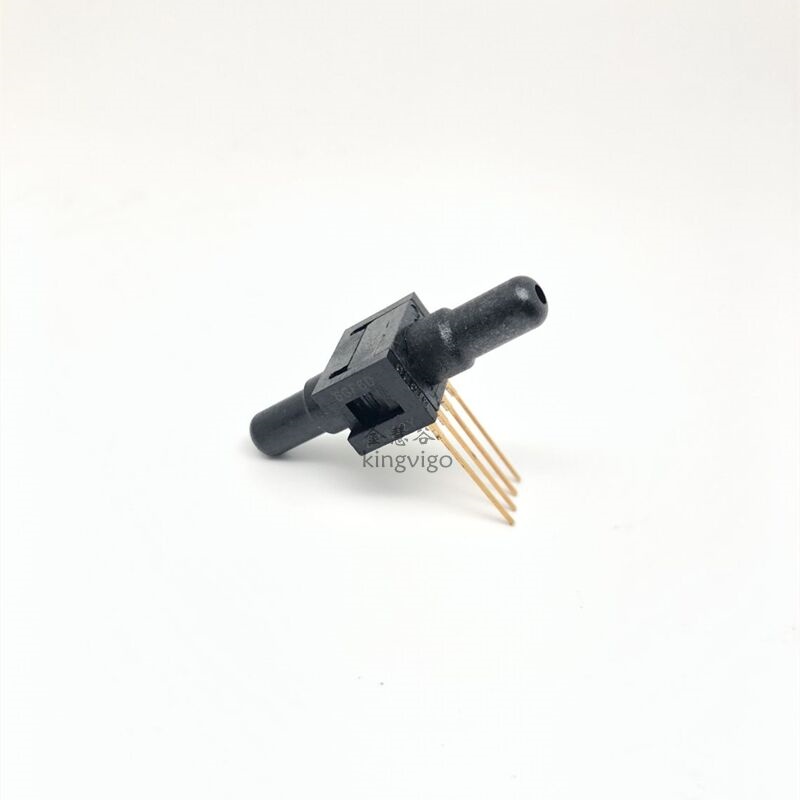

Optimize your high-pressure fluid manifolds and sensitive pneumatic control loops with the authentic 26PCGFA6D miniature pressure sensor. This active board-level sensor is specifically calibrated to deliver true wet/wet differential measurement across non-corrosive liquids and gases. Driven by a micro-machined silicon Wheatstone bridge, it translates micro-pressures into an exceptionally linear, unamplified millivolt signal without introducing circuit lag. Its traditional vertical 1×4 SIP through-hole package ensures maximum mechanical stability on your printed circuit boards, while the built-in temperature compensation minimizes offset errors under fluctuating environmental conditions.
Technical Specifications:
- Operating Pressure: 0 to 250 psi (differential reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Internal Seal Material: Premium fluorosilicone elastomer
- Port Style: Straight dual axial barbless configurations
- Termination Style: Through-hole PC pins (standard 4-pin SIP)
- Compensated Range: 0°C to 50°C for superior zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Industrial hydraulic control loops and high-pressure process monitoring
- Liquid level tracking in pressurized industrial vats and water storage tanks
- Heavy pneumatic machinery networks and specialized fluid logging manifolds
