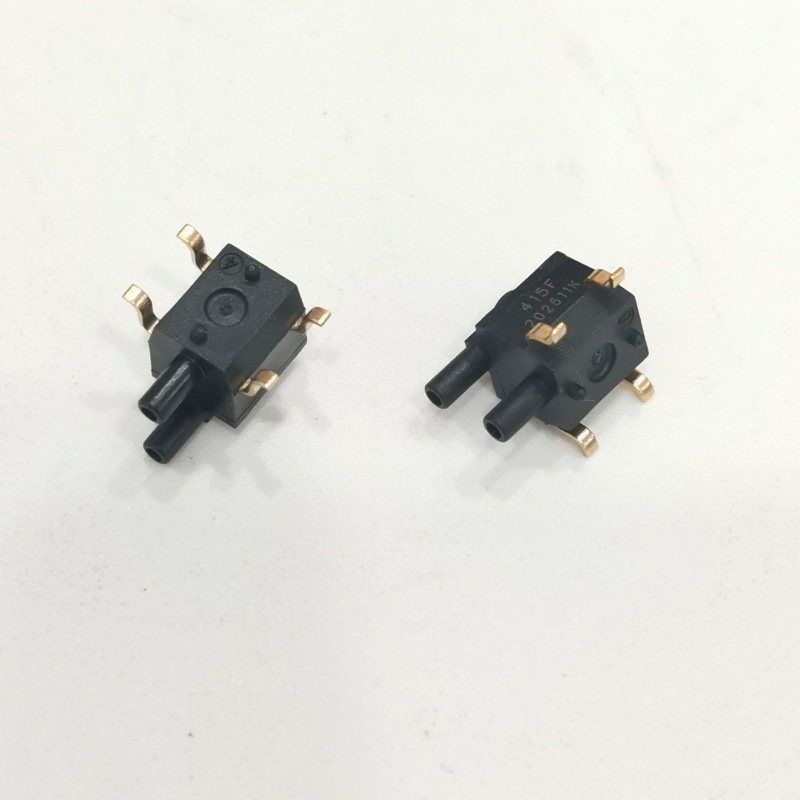

Optimize your compact hardware layouts with the high-reliability Honeywell 24PC15SMT board-mount pressure sensor. As a core member of the specialized 24PC SMT family, this miniature device utilizes a micromachined silicon sensing element to provide repeatable wet-to-wet differential, gage, or vacuum tracking across a 15.0 PSI pressure range.
While traditional architectures like the 24PCFFA6G profile rely on larger through-hole pins, the 24PC15SMT model employs a space-saving surface mount footprint. This low-profile housing reduces board space requirements and fits seamlessly into standard automated assembly workflows. Its dual straight barbless ports easily accommodate liquid or gas media on both channels. Running on an uncompensated Wheatstone bridge grid, it delivers a raw 0 mV to 225 mV analog ratiometric signal, granting developers total freedom to build custom amplification and signal processing circuits.
Key Technical Parameters:
- Brand: Honeywell
- Model Number: 24PC15SMT
- Rating Range: Plus or minus 15.0 PSI max
- Package Case: 4-SMD surface mount style
- Port Configuration: Dual straight barbless tube ports (1.88mm)
- Output Type: Unamplified analog millivolt signal
- Overpressure Safety: 45 PSI maximum overload ceiling
The rugged 24PC15SMT framework is heavily integrated into clinical medical ventilators, chemical processing lines, and electronic pressure manifolds. It offers an excellent design solution for shrinking older 24PCFFA6G based systems into optimized, modern product profiles.
