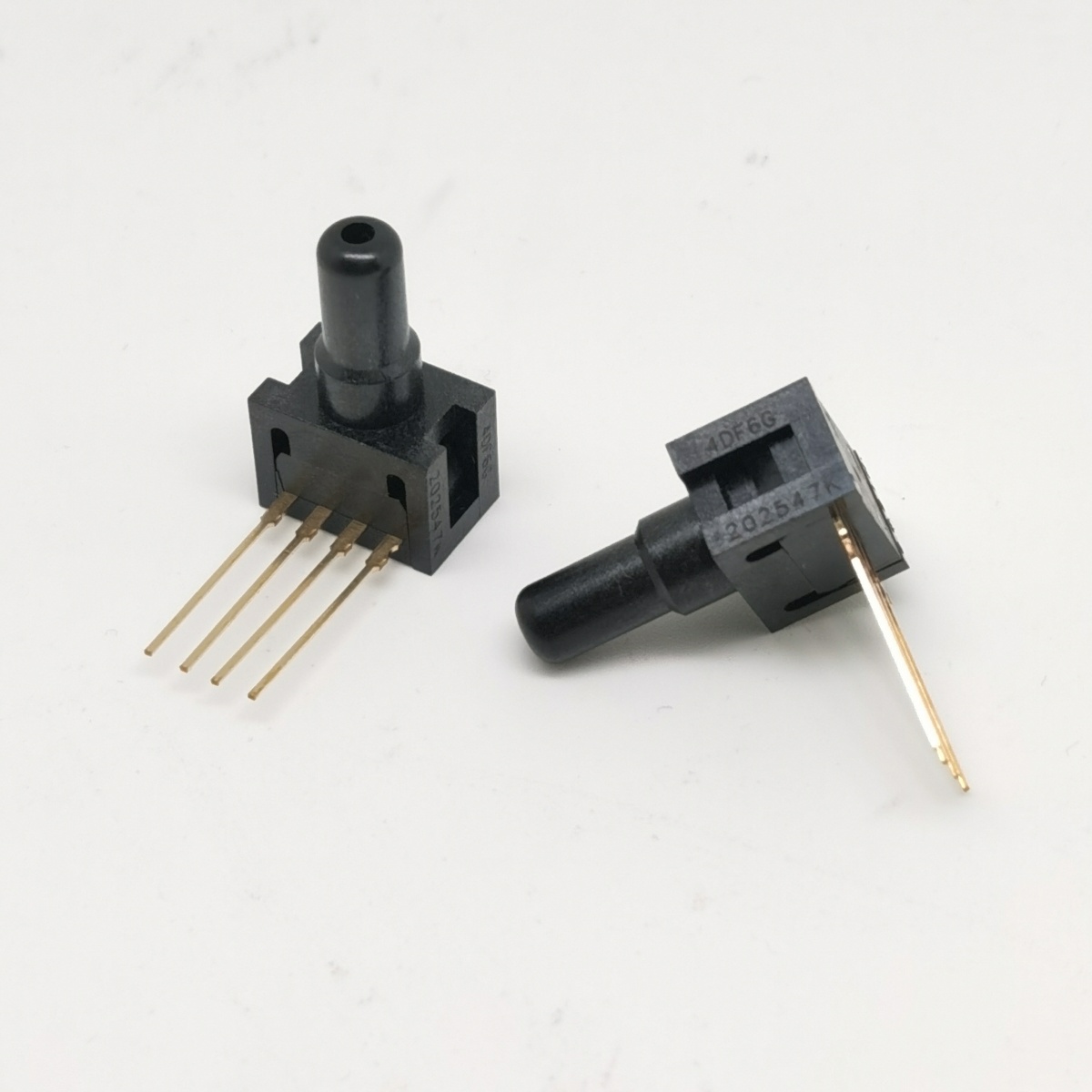

Enhance your board-level electronics instrumentation with the reliable Honeywell 24PCDFA6G medium-range pressure sensor. Representing a staple choice within the uncompensated 24PC component line, this miniature device utilizes an advanced piezoresistive silicon micro-die to deliver accurate fluid reading data across an operational window of plus or minus 30.0 PSI.
While low-span layouts typically rely on hyper-sensitive sub-PSI elements, the 24PCDFA6G framework bridges the gap between delicate micro-fluidics and heavy industrial lines. It features a single axial straight barbless tube port designed for a secure friction fit with standard piping. Operating on a raw, unamplified Wheatstone bridge circuit, this sensor yields a proportional 0 mV to 330 mV analog signal at 10 VDC excitation. This configuration allows design engineers maximum freedom to develop proprietary external temperature calibration, null offset filtering, and operational amplifier networks tailored to their specific data acquisition systems.
Key Technical Parameters:
- Brand: Honeywell
- Manufacturer Catalog Number: 24PCDFA6G
- Operational Pressure Scale: Plus or minus 30.0 PSI
- Interfacing Fluid Port: Single axial straight barbless 0.2 inch port
- Signal Output Frame: Raw analog millivolt ratiometric response
- Nominal Input Excitation: 10 VDC typical to 12 VDC maximum ceiling
- Termination Mounting Layout: 4-SIP module style with vertical through-hole pins
- Response Dynamics Speed: 1.0 ms maximum response cycle
- Environmental Temperature Limit: -40 degrees Celsius to 85 degrees Celsius
Target Industry Layouts:
The dependable media compliance and durable framing make the 24PCDFA6G ideal for oxygen or nitrogen gas distribution manifolds, water control valves, automated pneumatic lines, and environmental monitors. Its standardized single-in-line housing shares identical physical spacing with the low-pressure 24PCFFA6G sensor, making it effortless for industrial developers to swap or upgrade components during hardware revisions without redrawing the printed circuit board traces.
The dependable media compliance and durable framing make the 24PCDFA6G ideal for oxygen or nitrogen gas distribution manifolds, water control valves, automated pneumatic lines, and environmental monitors. Its standardized single-in-line housing shares identical physical spacing with the low-pressure 24PCFFA6G sensor, making it effortless for industrial developers to swap or upgrade components during hardware revisions without redrawing the printed circuit board traces.
Incorporate the 24PCDFA6G to bring enterprise-grade linearity and proven silicon sensing mechanics to your compact hardware solutions.
