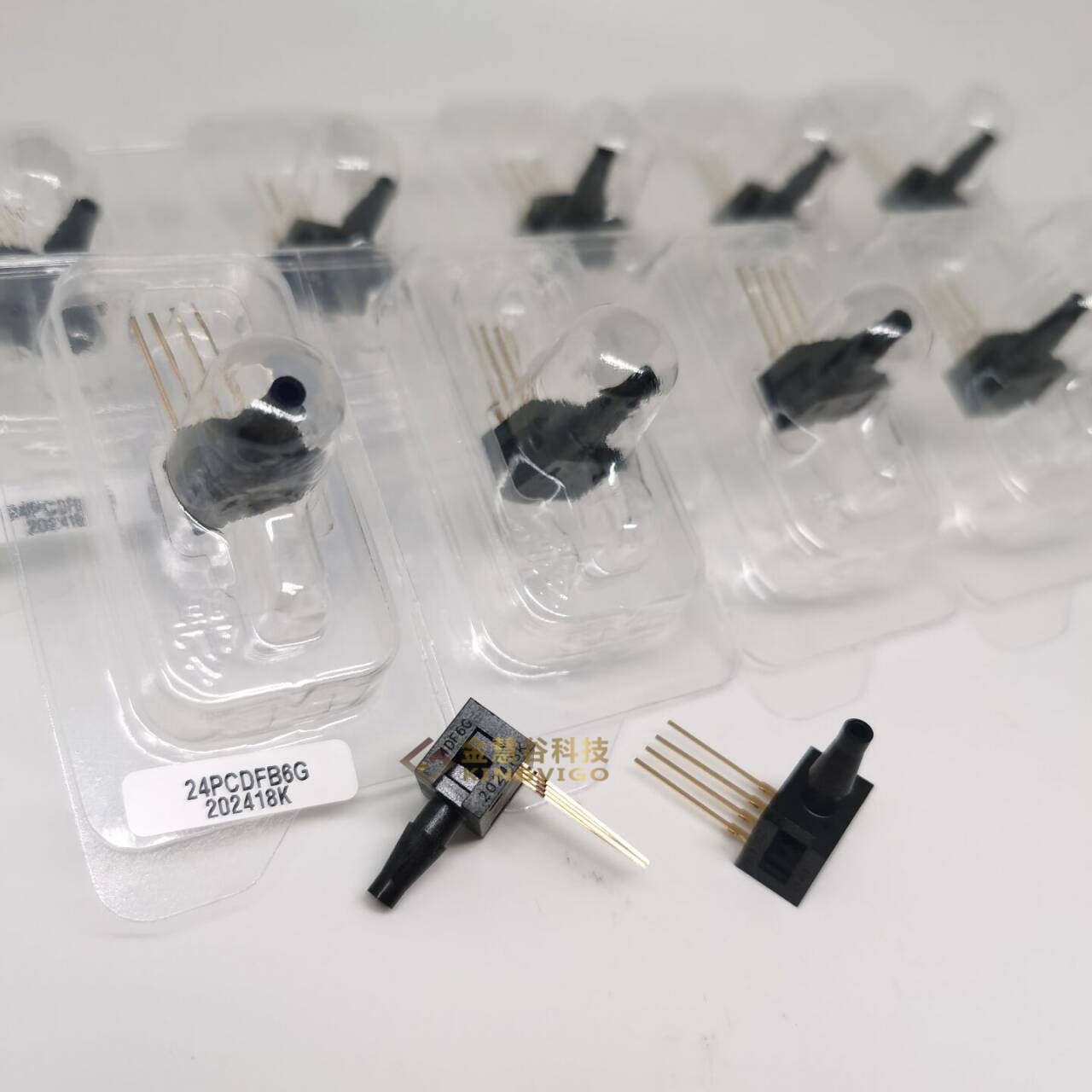

Upgrade your professional fluid control systems with the reliable Honeywell 24PCDFB6G medium-range pressure sensor. Delivering field-proven consistency within the uncompensated 24PC component family, this miniature device utilizes a specialized piezoresistive micromachined silicon die to secure precise pressure data across a working range of plus or minus 30.0 PSI.
While the related 24PCFFA6G architecture is widely implemented for lower-pressure barbless connection environments, the 24PCDFB6G model features a heavy-duty 0.25 inch male barbed pressure port. This barbed framing ensures an airtight, leak-resistant connection with flexible pneumatic tubing, minimizing the risk of accidental hose detachment during pressure spikes. The internal circuit architecture functions as a raw, ratiometric Wheatstone bridge, outputting a proportional 0 mV to 330 mV analog signal at 10 VDC excitation. This gives instrumentation engineers total flexibility to develop proprietary external signal amplification, temperature drift filtering, and voltage regulation hardware.
Key Technical Specifications:
- Brand: Honeywell
- Factory Part Number: 24PCDFB6G
- Measurement Range Capability: Plus or minus 30.0 PSI
- Connection Fluid Port: Single male barbed 0.25 inch port for secure tube retention
- Output Voltage Frame: Unamplified raw analog millivolt ratiometric response
- Nominal Input Excitation: 10 VDC typical to 12 VDC maximum ceiling
- Mounting Footprint Style: 4-SIP module with vertical through-hole printed circuit board pins
- Response Time Performance: 1.0 ms maximum response cycle
- Environmental Temperature Limit: -40 degrees Celsius to 85 degrees Celsius
Target Engineering Sectors:
The robust mechanical connection and steady silicon performance make the 24PCDFB6G highly suitable for pneumatic automation devices, oxygen gas blending systems, industrial fluid pumps, and electronic laboratory test benches. Because it shares identical physical layout spacing with the standard 24PCFFA6G sensor, board designers can drop this barbed 30 PSI variant into existing hardware arrays seamlessly when adapting products for higher-vibration or tight-grip piping lines.
The robust mechanical connection and steady silicon performance make the 24PCDFB6G highly suitable for pneumatic automation devices, oxygen gas blending systems, industrial fluid pumps, and electronic laboratory test benches. Because it shares identical physical layout spacing with the standard 24PCFFA6G sensor, board designers can drop this barbed 30 PSI variant into existing hardware arrays seamlessly when adapting products for higher-vibration or tight-grip piping lines.
Integrate the 24PCDFB6G to ensure industrial-grade pressure linearity and maximum hardware connection security in your next device assembly.
