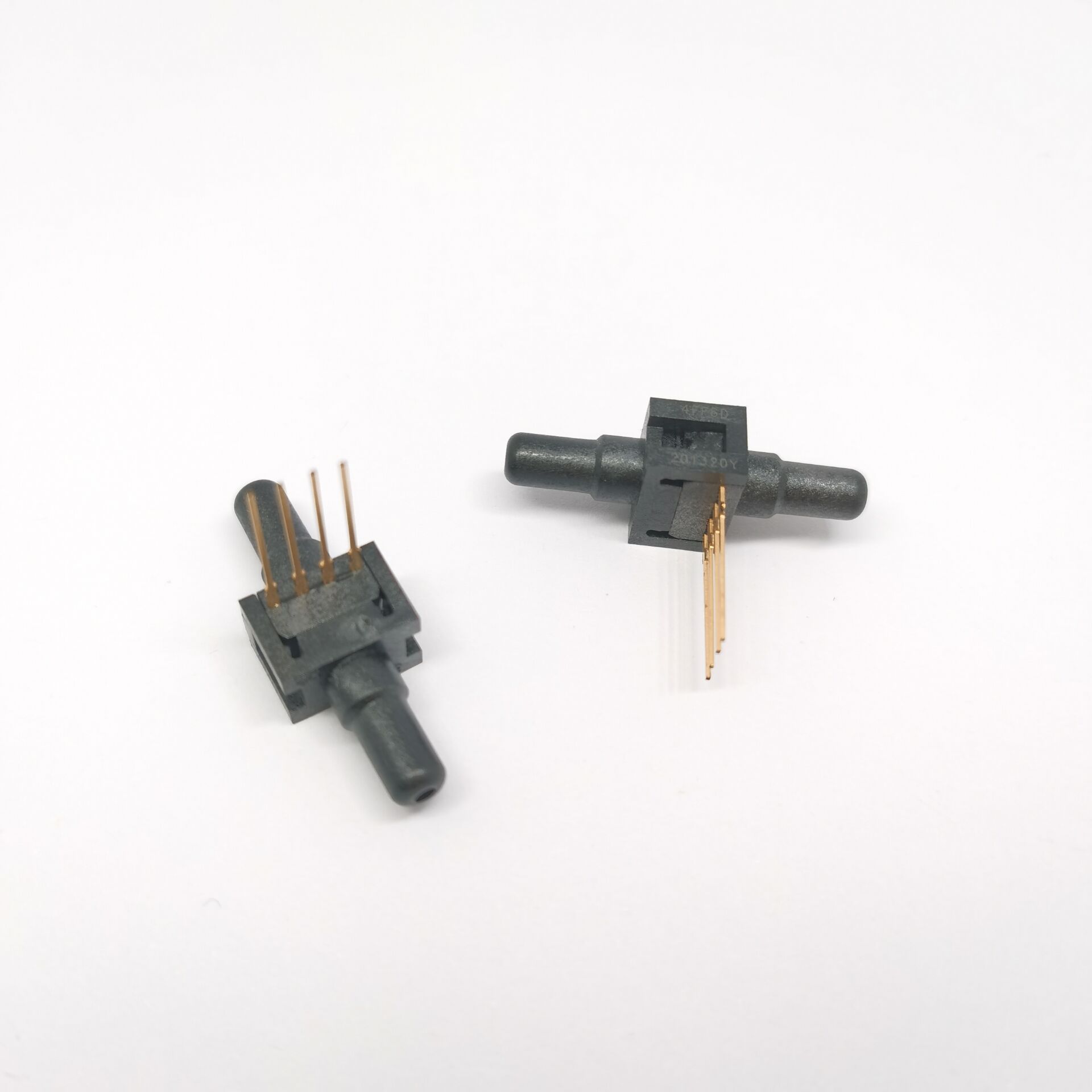

Optimize your differential fluid instrumentation with the precision-engineered Honeywell 24PCFFA6D low pressure sensor. Part of the highly regarded 24PC Series, this board-level component features an advanced piezoresistive micromachined silicon sensing element designed to handle demanding industrial and medical applications.
Unlike standard gage sensors, the 24PCFFA6D features a specialized dual axial barbless port design on opposite sides, enabling a complete wet-to-wet differential pressure measurement across a range of plus or minus 100 PSI. The inner circuit functions via an unamplified Wheatstone bridge structure, offering design engineers the flexibility to integrate custom signal conditioning networks or operational amplifier configurations.
Key Technical Specifications:
- Manufacturer: Honeywell
- Part Number: 24PCFFA6D
- Pressure Range: 0 to 100 PSI (Differential reading type)
- Port Configuration: Dual axial barbless ports on opposite sides (5mm / 0.2 inch)
- Output Type: Analog millivolt (0 mV to 225 mV typical)
- Excitation Voltage: 2.5 VDC minimum to 12 VDC maximum
- Connection Termination: 4-pin printed circuit board through-hole configuration
- Operating Temperature: -40 degrees Celsius to 85 degrees Celsius
- Media Compatibility: Compatible with liquids, air, oxygen, and nitrogen gas
Target Applications:
The rugged housing and compact footprint make the 24PCFFA6D ideal for medical breathing devices, oxygen delivery systems, environmental monitors, automated liquid level controls, and specialized pneumatic test benches. Its 4-SIP architecture ensures easy integration directly onto modern printed circuit boards where space and cost reduction are top priorities.
The rugged housing and compact footprint make the 24PCFFA6D ideal for medical breathing devices, oxygen delivery systems, environmental monitors, automated liquid level controls, and specialized pneumatic test benches. Its 4-SIP architecture ensures easy integration directly onto modern printed circuit boards where space and cost reduction are top priorities.
Whether specifying parts for mass industrial equipment manufacturing or building custom laboratory test setups, the 24PCFFA6D delivers the robust quality expected from a Honeywell sensing solution.
