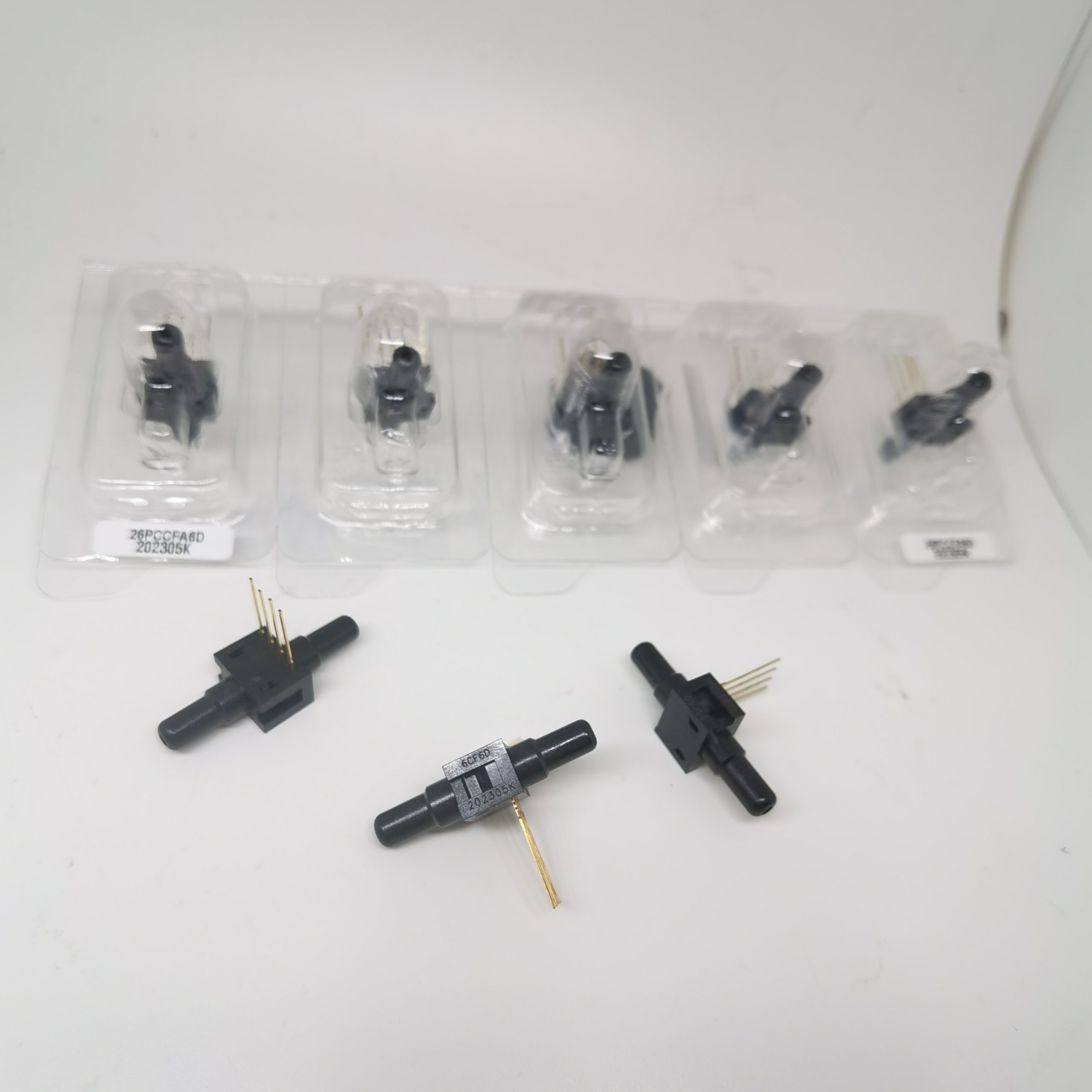

Upgrade your industrial instrumentation or medical fluid systems with the authentic 26PCCFA6D low pressure sensor. This board-level component utilizes advanced silicon micro-machining to convert fluid or gas pressures into a highly linear millivolt output signal. Designed with a rugged 4-SIP layout, it achieves maximum interchangeability and stable performance without requiring on-board electronic amplification. Both ports feature wet/wet compatibility, allowing safe contact with liquids and non-corrosive media.
Technical Specifications:
- Operating Pressure: 0 to 15 psi (differential reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Seal Material: High-grade fluorosilicone elastomer
- Port Style: Straight dual axial barbless configurations
- Termination Style: Through-hole PC pins (4-pin SIP module)
- Compensated Range: 0°C to 50°C for minimal thermal drift
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Medical respiratory monitoring and dialysis machine controls
- Liquid level detection in water tanks and industrial vats
- HVAC filter restriction indicators and pneumatic control systems
