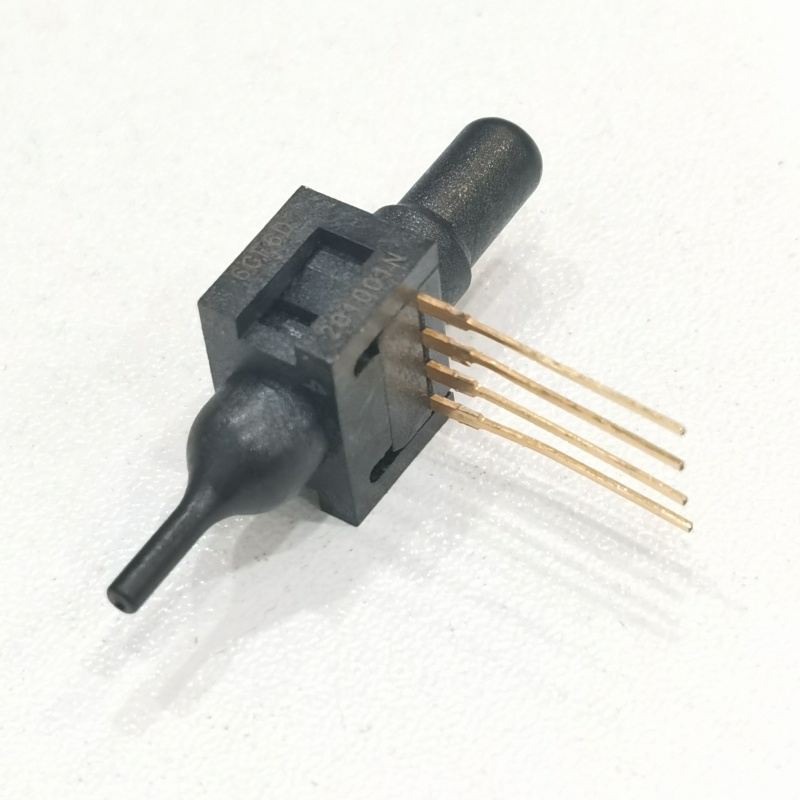

Optimize your intermediate fluid manifolds and sensitive pneumatic control loops with the authentic 26PCCFJ6D miniature pressure sensor. This active board-level sensor is specifically calibrated to deliver true wet/wet differential measurement across non-corrosive liquids and gases. Driven by a micro-machined silicon Wheatstone bridge, it translates micro-pressures into an exceptionally linear, unamplified millivolt signal without introducing circuit lag. The unique 1/4-28 UNF threaded single axial port ensures a secure, leak-free mechanical coupling to industrial fittings, while the traditional vertical 1×4 SIP through-hole package ensures maximum mechanical stability on your printed circuit boards.
Technical Specifications:
- Operating Pressure: 0 to 15 psi (differential reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Internal Seal Material: Premium fluorosilicone elastomer
- Port Style: Single 1/4-28 UNF fine threaded configuration
- Termination Style: Through-hole PC pins (standard 4-pin SIP module)
- Compensated Range: 0°C to 50°C for superior zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Medical respiratory equipment and chemical diagnostic monitors
- Liquid level tracking and flow monitoring in threaded manifold systems
- HVAC filter restriction indicators and medium-pressure process loops
