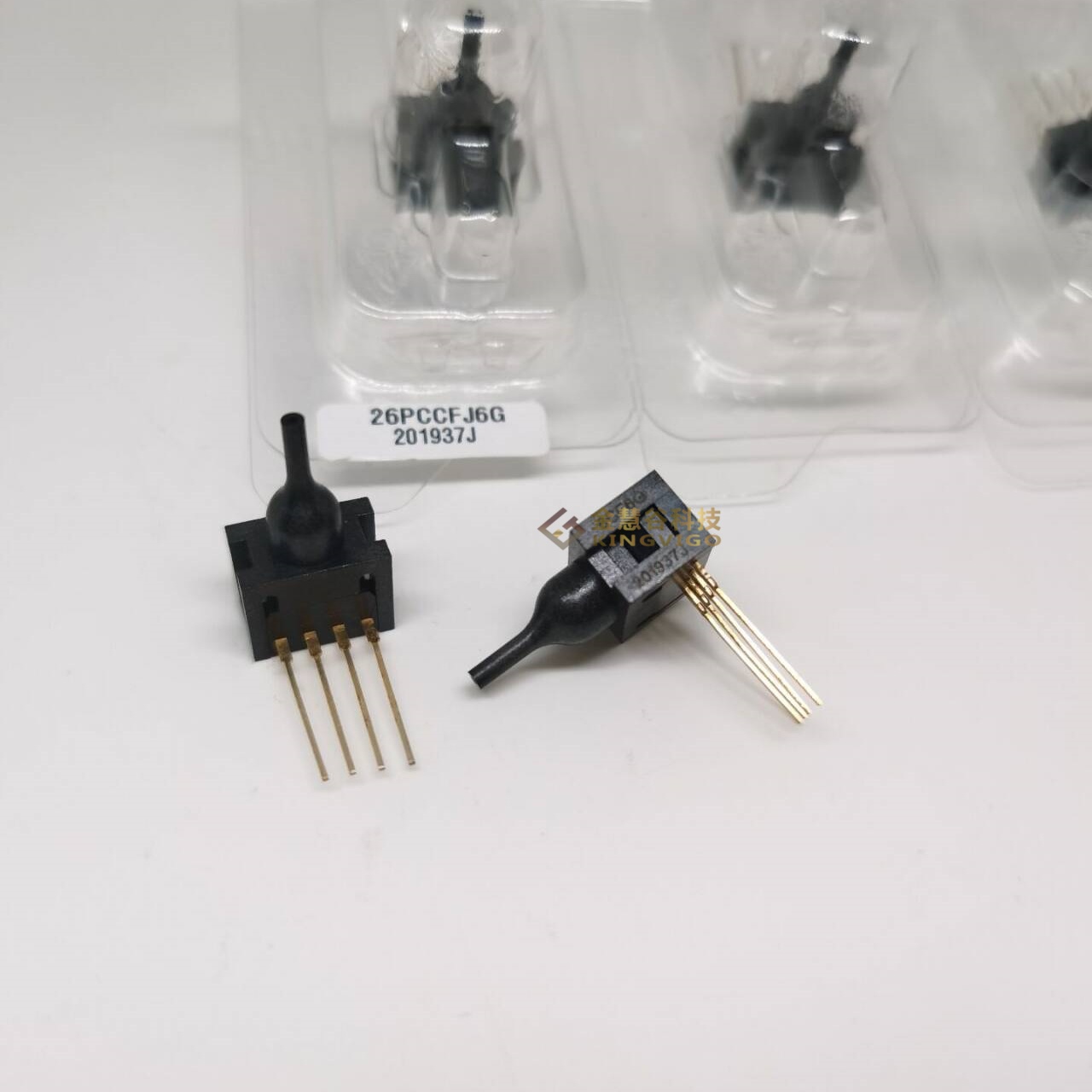

Optimize your intermediate fluid systems and specialized pneumatic control loops with the authentic 26PCCFJ6G board-level pressure sensor. This active piezoresistive component is specifically calibrated to monitor standard positive gauge pressure relative to localized ambient atmospheric conditions. Utilizing an advanced micromachined silicon Wheatstone bridge, it translates system pressures into an inherently linear, unamplified millivolt voltage for direct micro-controller calibration. The unique 1/4-28 UNF英制螺纹 single port ensures a secure, leak-free mechanical coupling to industrial fittings without bulky adaptors, while the traditional 1×4 SIP vertical layout provides excellent mechanical grounding and reliable electrical connection on printed circuit boards.
Technical Specifications:
- Operating Pressure: 0 to 15 psi (standard gauge reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Internal Seal Material: High-grade fluorosilicone elastomer
- Port Style: Single 1/4-28 UNF fine threaded configuration
- Termination Style: Through-hole PC pins (standard 4-pin SIP)
- Compensated Range: 0°C to 50°C for exceptional zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Medical respiratory equipment and chemical diagnostic monitors
- Liquid level tracking in small water tanks and industrial vats
- HVAC filter restriction indicators and threaded pneumatic machinery
