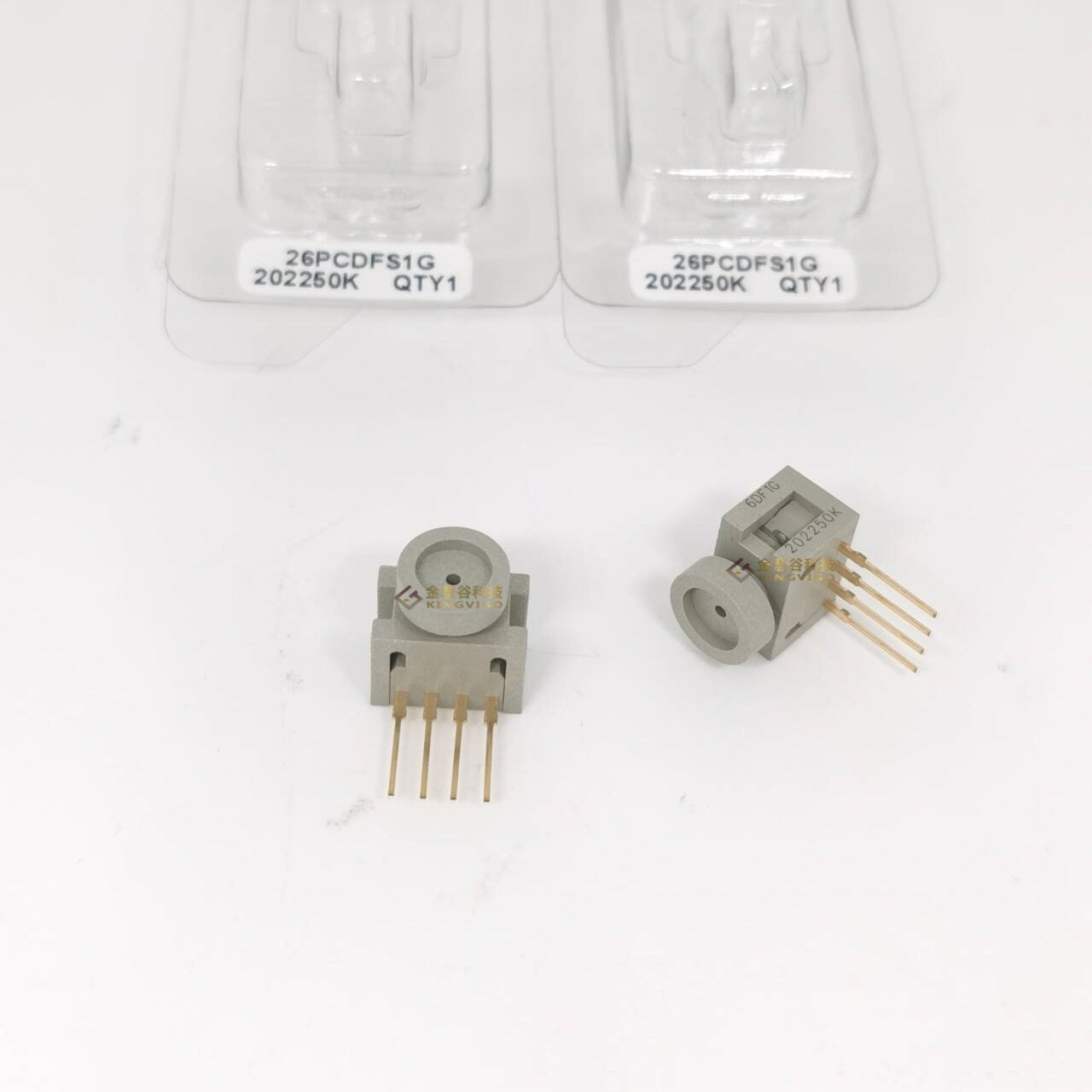

Optimize your advanced micro-fluidic loops and inline pneumatic systems with the authentic 26PCDFS1G board-level pressure sensor. This active piezoresistive component is factory-calibrated to monitor positive and negative compound gauge pressures up to 30 psi relative to atmospheric conditions. Utilizing a specialized micromachined silicon Wheatstone bridge, it translates chemical or gas line pressures into an inherently linear, unamplified millivolt signal for external instrumentation conditioning. The distinct inline flow-through port design allows the monitored media to stream directly through the sensing chamber without creating dead volume or fluid stagnation, while the vertical 1×4 SIP package ensures standard mechanical grounding on printed circuit boards. [1, 2, 3, 4]
Technical Specifications:
- Operating Pressure Range: -30 psi to +30 psi (compound gauge reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Full Scale Output: 100 mV typical span at 10V supply
- Internal Seal Material: High-grade fluorosilicone elastomer
- Port Style: Inline flow-through style configuration for continuous fluidics
- Termination Style: Through-hole PC pins (standard 4-pin SIP module)
- Compensated Range: 0°C to 50°C for superior zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C [1, 2, 3, 4, 5]
Common Engineering Applications:
- Medical dialysis equipment and inline blood processing lines
- Chemical analysis instrumentation and microfluidic routing blocks
- Industrial ink-jet printing systems and continuous gas sampling filters
