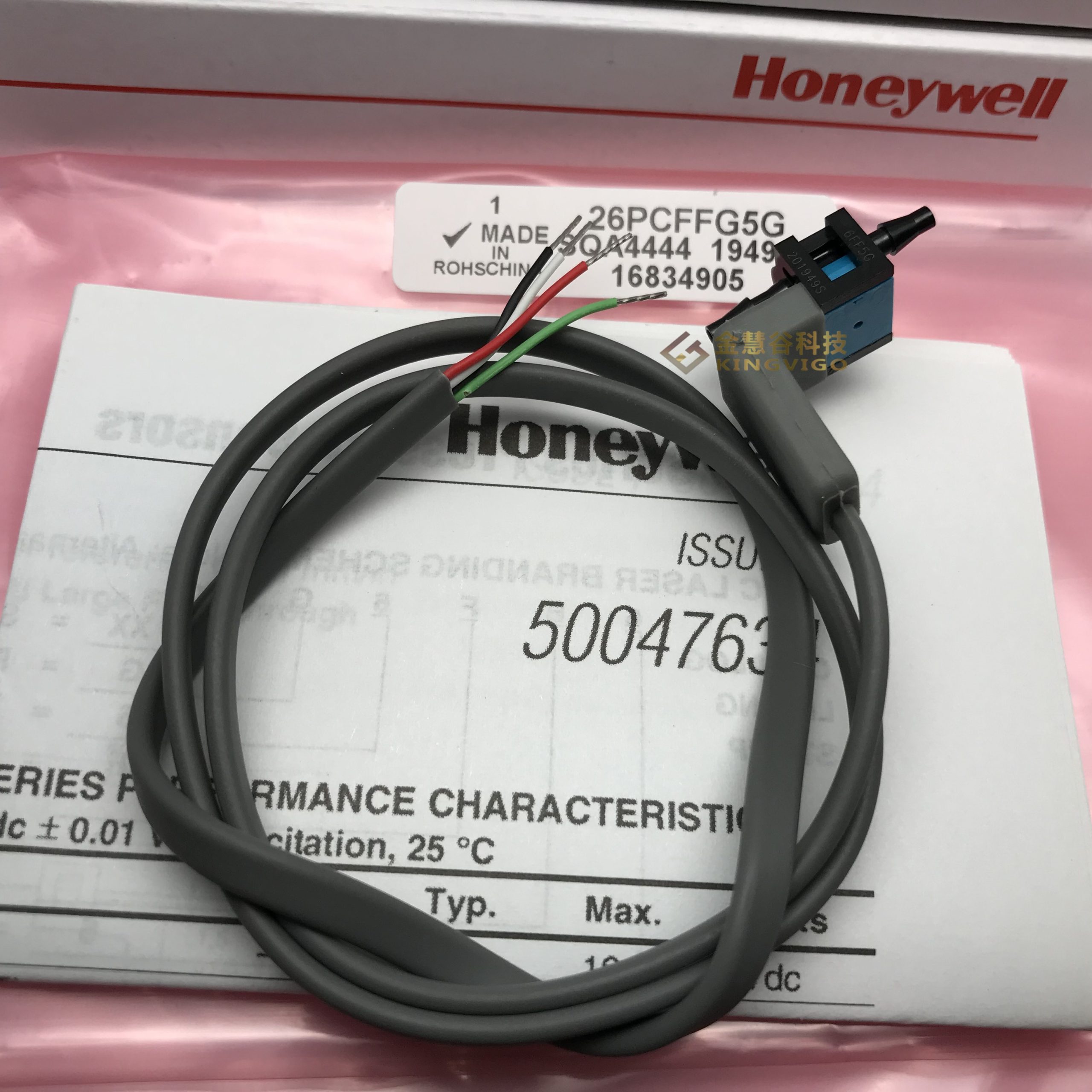

Optimize your medium-to-high fluid networks and compact pneumatic control loops with the authentic 26PCFFG5G board-level pressure sensor. This active piezoresistive component is factory-calibrated to monitor positive gauge pressure up to 100 psi relative to localized atmospheric conditions. Powered by an advanced micromachined silicon Wheatstone bridge, it translates system pressures into an exceptionally linear, unamplified 100 mV millivolt voltage at 10VDC excitation. The distinct single cross port design delivers versatile side-retention options for complex flexible tubing routes, while the specialized short-style 4-SIP vertical package provides a lower profile and secure mechanical grounding on multi-layer printed circuit boards.
Technical Specifications:
- Operating Pressure: 0 to 100 psi (intermediate gauge reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Full Scale Output: 100 mV typical span at 10V supply
- Internal Seal Material: High-grade fluorosilicone elastomer
- Port Style: Single cross port configuration for flexible side-tubing paths
- Termination Style: Through-hole compact PC pins (1×4 SIP, 10.2 mm [0.40 in] lead length)
- Compensated Range: 0°C to 50°C for superior zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Medical fluid monitoring systems and automated chemical analysis lines
- HVAC filter restriction indicators and side-mount pneumatic machinery
- Liquid level tracking in pressurized water tanks and gas logging manifolds
