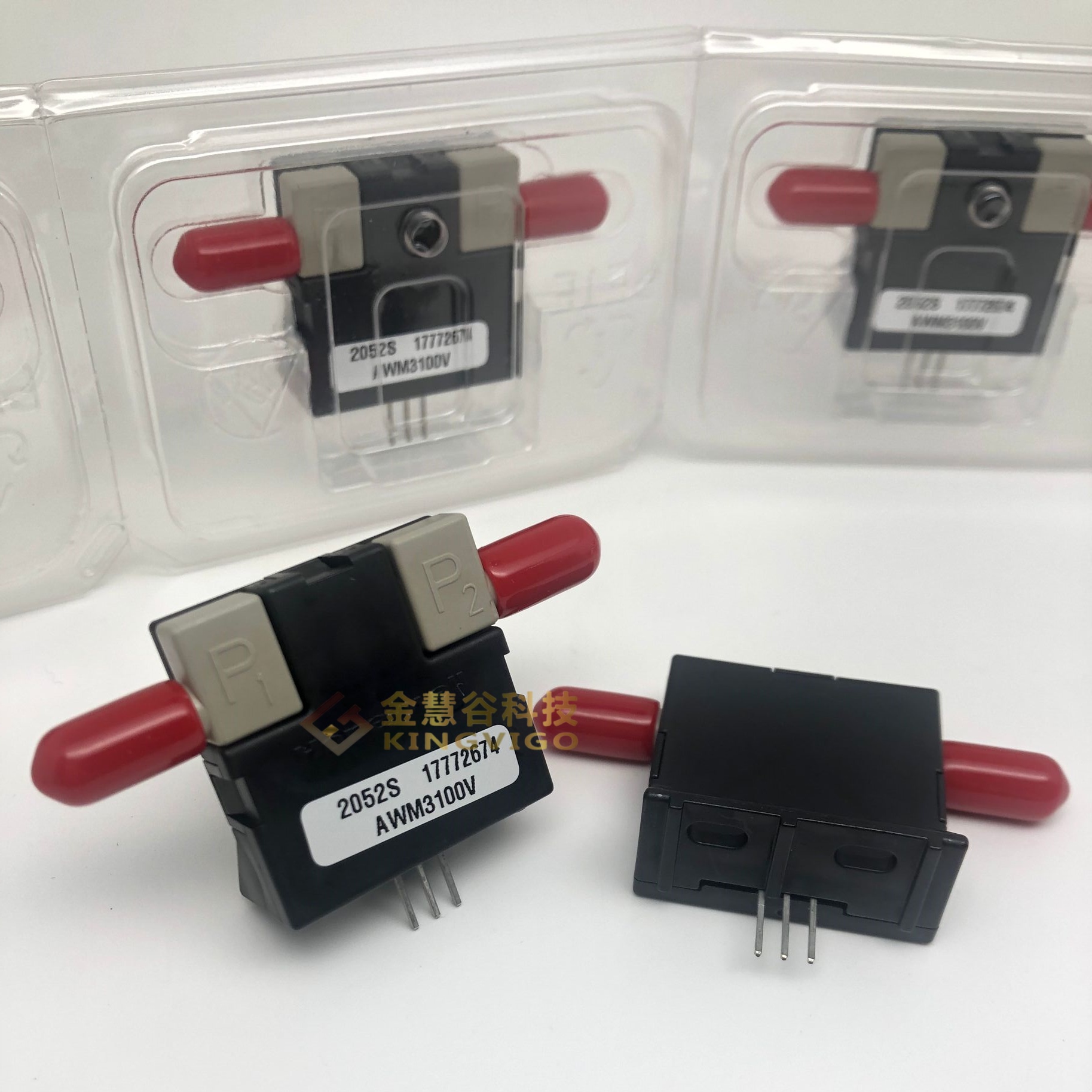

The Honeywell AWM3100V is a fully signal-conditioned microbridge thermal mass gas flow sensor from the AWM3000 Series. Utilizing specialized silicon MEMS technology, it ensures accurate repeatability, low pressure drop, and dependable ratiometric output for non-corrosive gases.
Key Features
- Sensor Type: Amplified / Signal Conditioned Mass Flow Sensor
- Flow Range: ±200 SCCM (Standard Cubic Centimeters per Minute)
- Output Signal: 5.00 Vdc analog voltage at full scale
- Response Time: 1.0 ms typical / 3.0 ms maximum
- Port Configuration: 5.08 mm (0.2 inch) male plastic ports
- Operating Voltage: 8.0 Vdc to 15.0 Vdc (10.0 Vdc recommended)
- Power Consumption: 50 mW low power requirement
- Operating Temperature: -25 to 85 degrees Celsius
Applications
- Medical Equipment: Oxygen concentrators, sleep apnea monitors, anesthesia devices, and ventilators.
- Industrial Applications: Gas chromatography, leak detection systems, environmental analysis, and process gas control.
