honeywell awm43600v 2 gas mass flow sensor

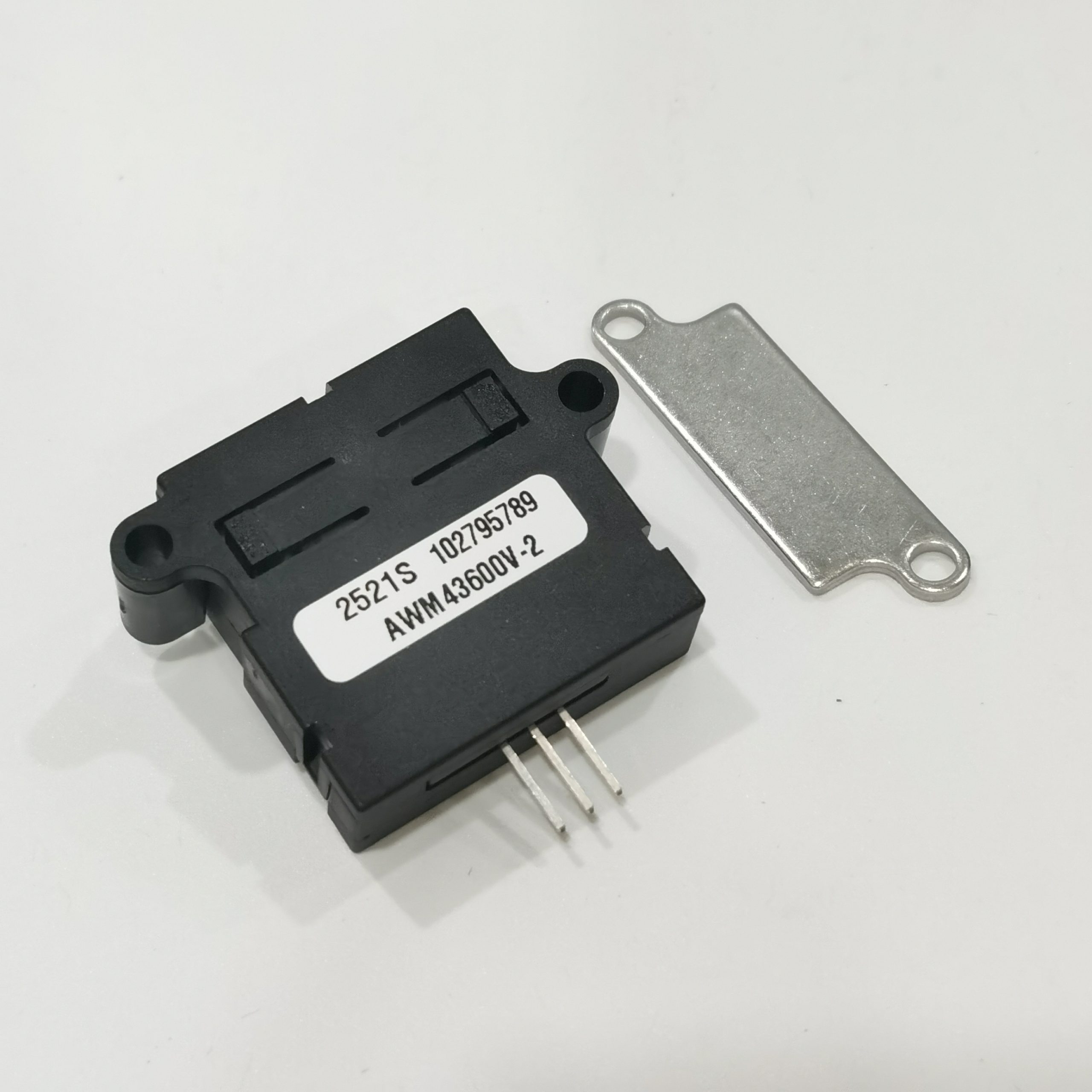

Honeywell AWM43600V-2 Gas Mass Flow Sensor

The Honeywell AWM43600V-2 is an amplified microbridge mass gas flow sensor engineered for higher flow rates. Featuring a 0 to 6 SLPM range, a fast 1 ms response time, and a pre-calibrated 5V analog voltage output, it provides high accuracy for medical ventilators and industrial process control with low pressure drop.
分类：
Get a Quote
The Honeywell AWM43600V-2 is an amplified microbridge thermal mass gas flow sensor from the AWM40000 Series, utilizing advanced MEMS technology to deliver a temperature-compensated, stable output proportional to gas flow.
Key Features
  • Sensor Type: Amplified Mass Gas Flow Sensor
  • Flow Range: 0 SLPM to 6 SLPM
  • Output Signal: 1.0 Vdc to 5.0 Vdc analog output
  • Response Time: 1.0 ms typical
  • Port Configuration: 4.8 mm female plastic ports
  • Operating Voltage: 8.0 Vdc to 15.0 Vdc
  • Calibration Medium: Optimized for Nitrogen and clean dry gases
  • Operating Temperature: -25 to 85 degrees Celsius

Applications
  • Medical Field: Medical respirators, anesthesia equipment, and oxygen delivery systems.
  • Industrial Control: Process gas monitoring, leak detection, and environmental analyzers.
