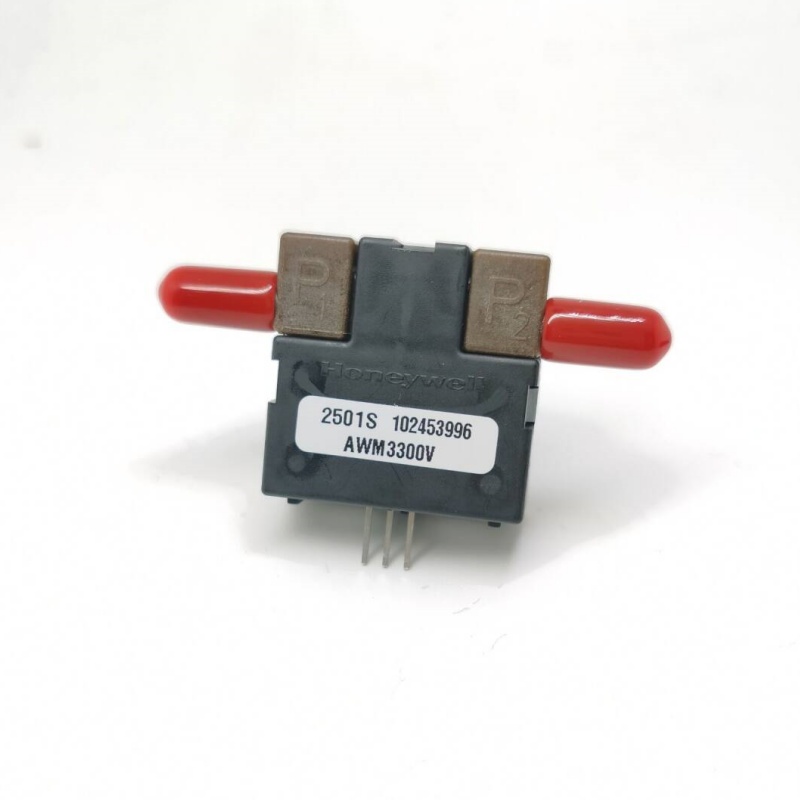

The Honeywell AWM3300V is a fully signal-conditioned microbridge thermal mass gas flow sensor from the AWM3000 Series. Utilizing specialized silicon MEMS technology, it ensures accurate repeatability, low pressure drop, and dependable output for clean dry gases.
Key Features
- Sensor Type: Amplified / Signal Conditioned Mass Flow Sensor
- Flow Range: 0 to 1000 SCCM (Standard Cubic Centimeters per Minute)
- Output Signal: 5.00 Vdc analog voltage at full scale
- Response Time: 1.0 ms typical / 3.0 ms maximum
- Port Configuration: 5.08 mm (0.2 inch) male plastic ports
- Operating Voltage: 8.0 Vdc to 15.0 Vdc (10.0 Vdc recommended)
- Power Consumption: 50 mW low power requirement
- Operating Temperature: -25 to 85 degrees Celsius
Applications
- Medical Equipment: Oxygen concentrators, sleep apnea monitors, anesthesia devices, and medical ventilators.
- Industrial Applications: Gas chromatography, leak detection systems, environmental analysis, and process gas control.
