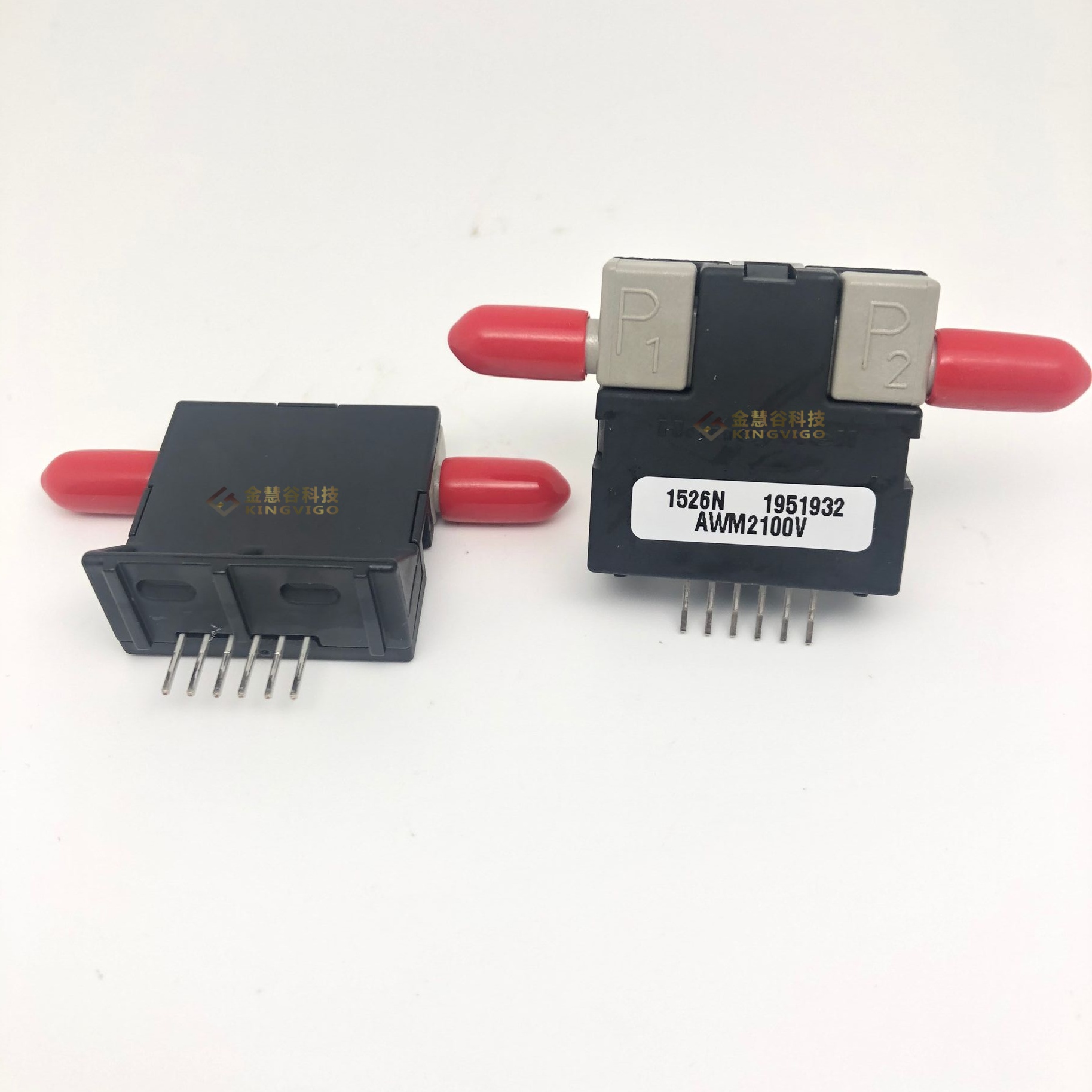

The Honeywell AWM2100V is an unamplified microbridge thermal mass gas flow sensor from the AWM2000 Series. Based on microelectronic and MEMS thermal transfer technology, it provides high stability, extremely low pressure drop, and exceptional responsiveness for precise non-corrosive gas measurements.
Key Features
- Sensor Type: Unamplified Mass Gas Flow Sensor
- Flow Range: ±200 SCCM (Standard Cubic Centimeters per Minute)
- Output Signal: 44.5 mV ±4.5 mVdc (at 200 SCCM full scale)
- Response Time: 1.0 ms typical / 3.0 ms maximum
- Operating Voltage: 8.0 Vdc to 15.0 Vdc (10.0 Vdc typical)
- Power Consumption: 30 mW typical low power requirement
- Operating Temperature: -25 to 85 degrees Celsius
Applications
- Medical Field: Oxygen concentrators, anesthesia delivery, respirators, and spirometers.
- Industrial Applications: Gas chromatography, leak detection systems, environmental monitoring, and gas metering.
