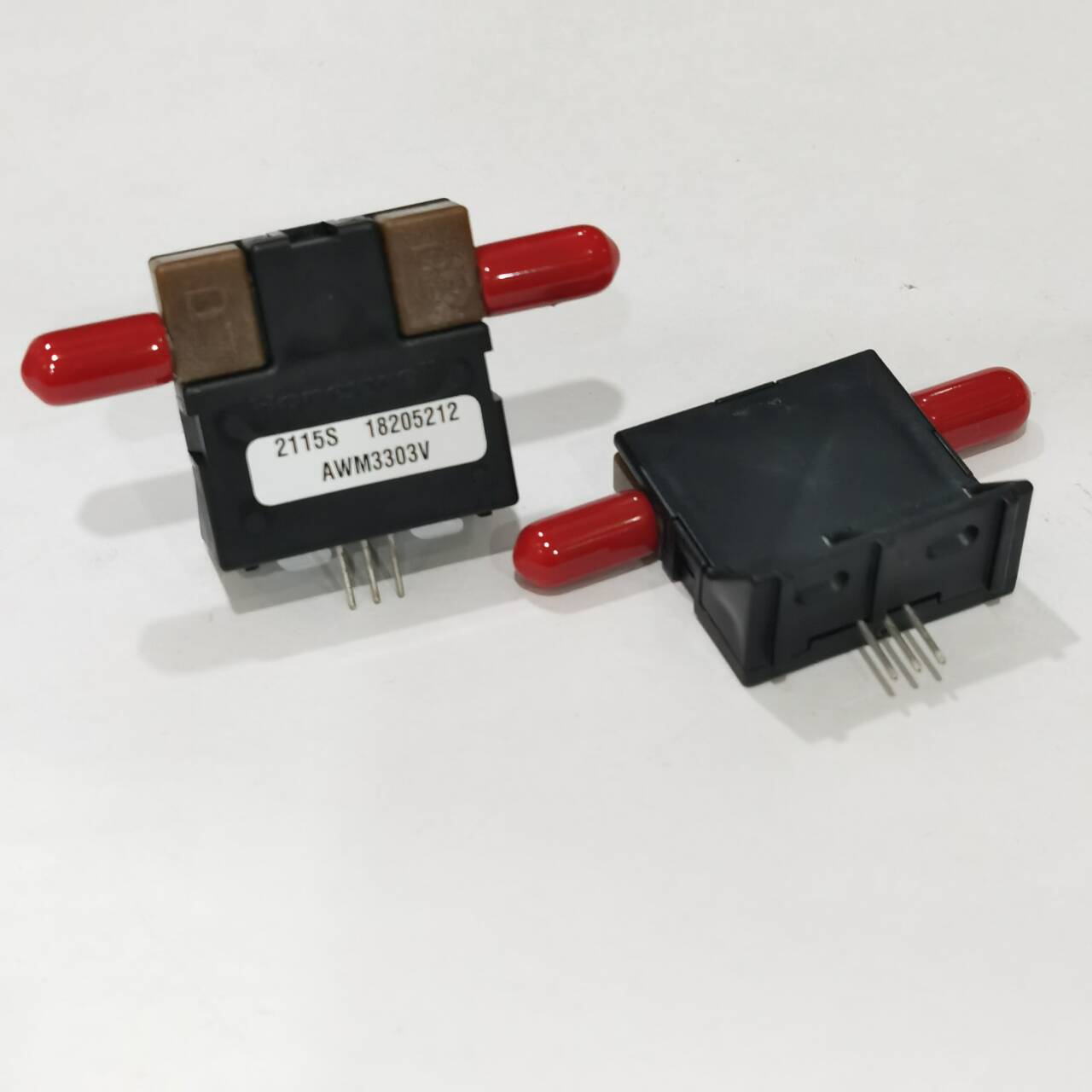

The Honeywell AWM3303V is an amplified thermal mass gas flow sensor from the AWM3000 Series. Utilizing silicon MEMS technology, it measures gas flow in two directions. It ensures accurate repeatability and low pressure drop for clean dry gas applications.
Key Features
- Sensor Type: Amplified Bi Directional Mass Flow Sensor
- Flow Range: Plus or minus 1000 SCCM
- Output Signal: 1.0 Vdc to 5.0 Vdc analog voltage
- Zero Flow Output: 3.0 Vdc at zero flow
- Response Time: 1.0 ms typical
- Port Configuration: 5.08 mm male plastic ports
- Operating Voltage: 8.0 Vdc to 15.0 Vdc
- Power Consumption: 50 mW low power requirement
- Operating Temperature: -25 to 85 degrees Celsius
Applications
- Medical Equipment: Medical respirators, oxygen concentrators, sleep apnea monitors, and anesthesia devices.
- Industrial Applications: Gas chromatography, leak detection systems, environmental analysis, and process gas control.
