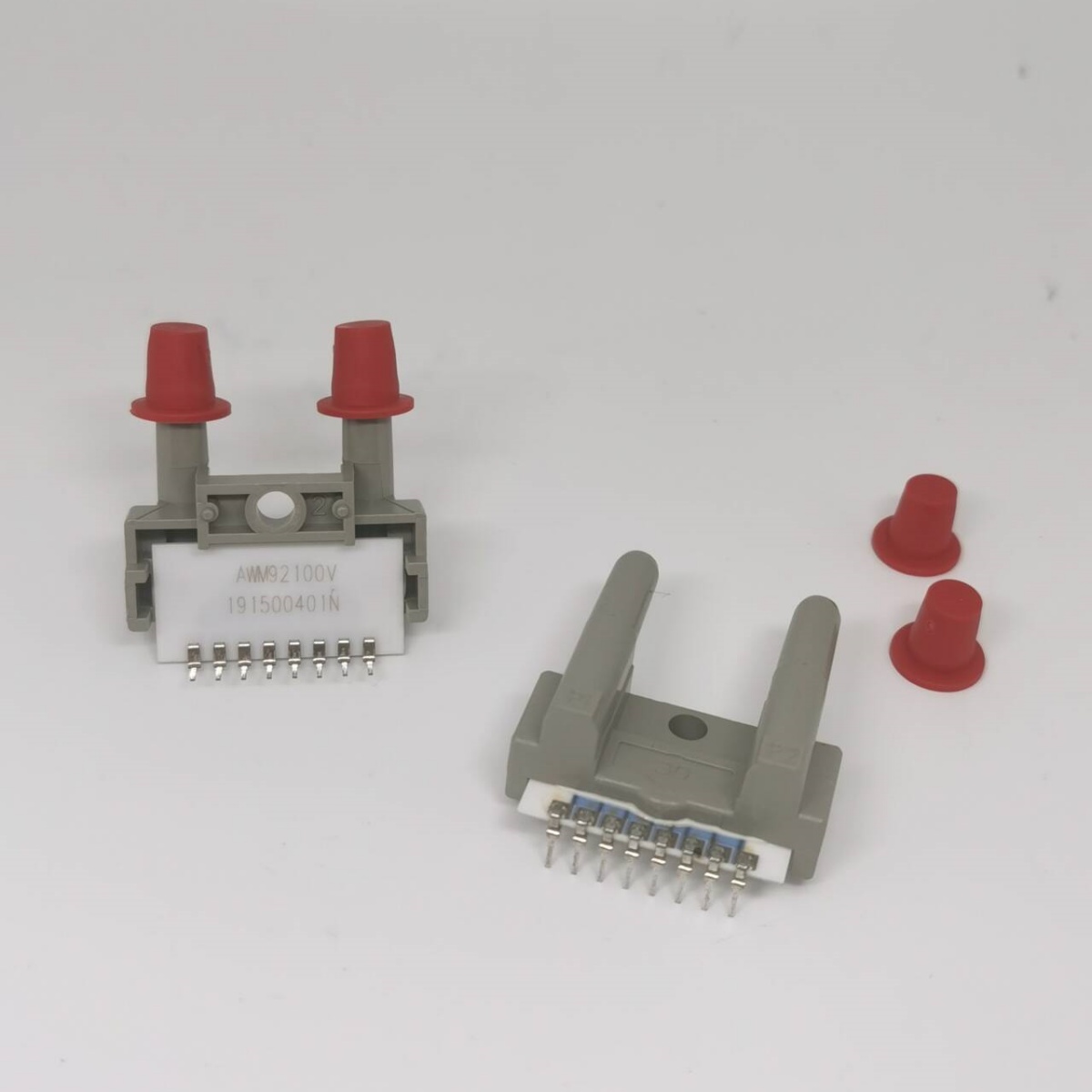

The Honeywell AWM92100V is a high performance unamplified microbridge thermal mass flow sensor. It operates on a proprietary MEMS thermal transfer mechanism to provide exceptional repeatability, low pressure drop, and extreme sensitivity for clean dry gas applications.
Key Features
- Sensor Type: Unamplified Mass Flow and Differential Pressure Sensor
- Flow Range: Plus or minus 200 SCCM
- Output Signal: 44.5 mV analog voltage at full scale
- Response Time: 1.0 ms typical
- Operating Voltage: 8.0 Vdc to 15.0 Vdc
- Power Consumption: 50 mW low power requirement
- Operating Temperature: minus 25 to 85 degrees Celsius
Applications
- Medical Equipment: Oxygen concentrators, sleep apnea monitors, anesthesia devices, and medical ventilators.
- Industrial Controls: HVAC damper control, leak detection systems, environmental analysis, and process gas metering.
