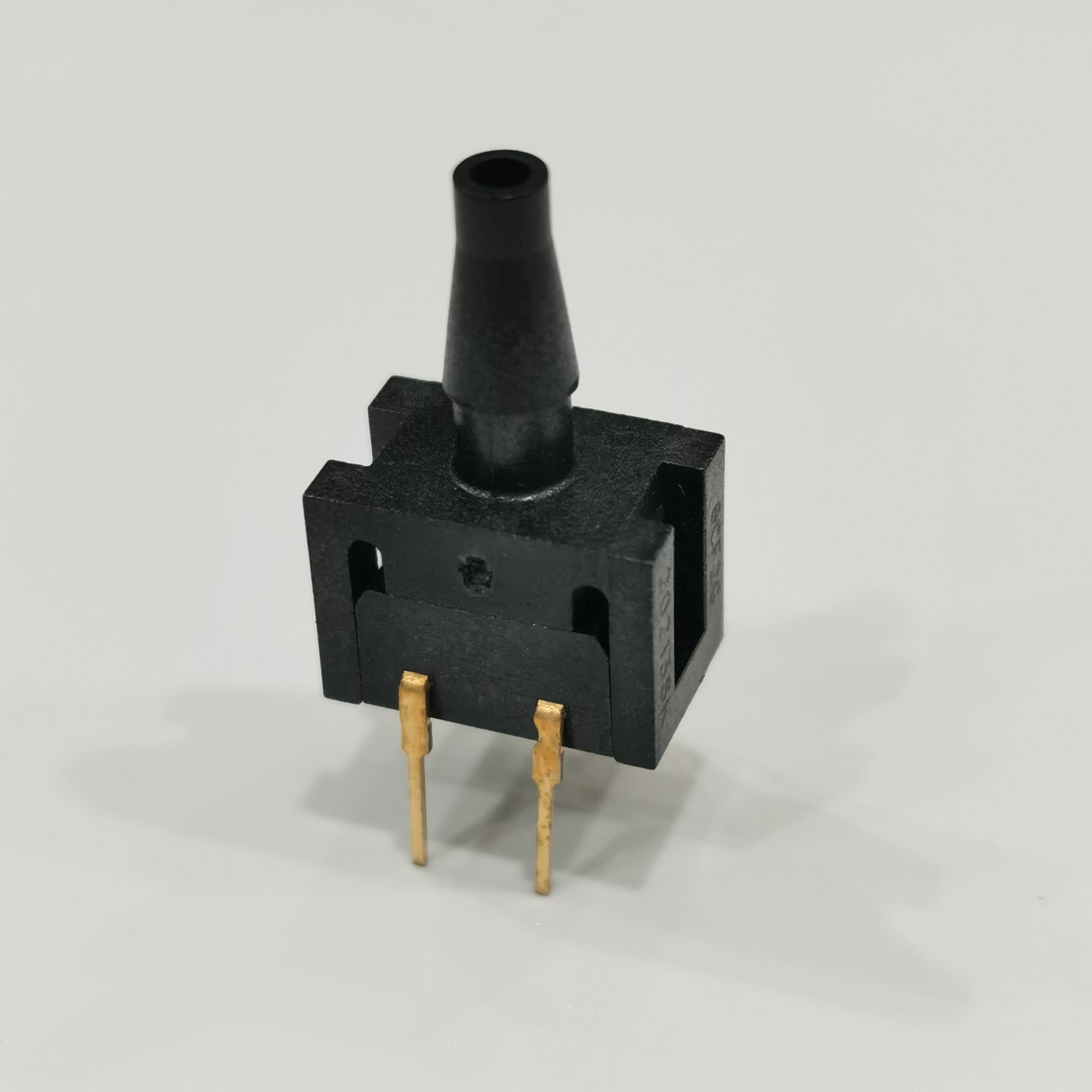

Optimize your localized fluid systems and specialized pneumatic control loops with the authentic 26PCCFB2G board-level pressure sensor. This active piezoresistive component is specifically calibrated to monitor standard positive gauge pressure relative to ambient atmospheric conditions. Utilizing an advanced micromachined silicon Wheatstone bridge, it translates system pressures into an inherently linear, unamplified millivolt voltage for direct micro-controller calibration. The single barbed port ensures an exceptionally secure, slip-free mechanical coupling to flexible tubing, while the distinctive 4-pin 2×2 DIP package provides excellent space savings and rigid grounding on printed circuit boards.
Technical Specifications:
- Operating Pressure: 0 to 15 psi (standard gauge reference)
- Signal Conditioning: Unamplified millivolt analog bridge
- Excitation Voltage: 10 VDC typical (up to 16 VDC maximum)
- Internal Seal Material: High-grade fluorosilicone elastomer
- Port Style: Single barbed axial configuration for secure tubing
- Termination Style: Through-hole PC pins (compact 2×2 DIP layout)
- Compensated Range: 0°C to 50°C for exceptional zero-point tracking
- Operating Temperature: Verified stable from -40°C to +85°C
Common Engineering Applications:
- Medical respiratory equipment and chemical diagnostic monitors
- Liquid level tracking in compact water tanks and industrial vats
- HVAC filter restriction indicators and secure-connection pneumatic machinery
