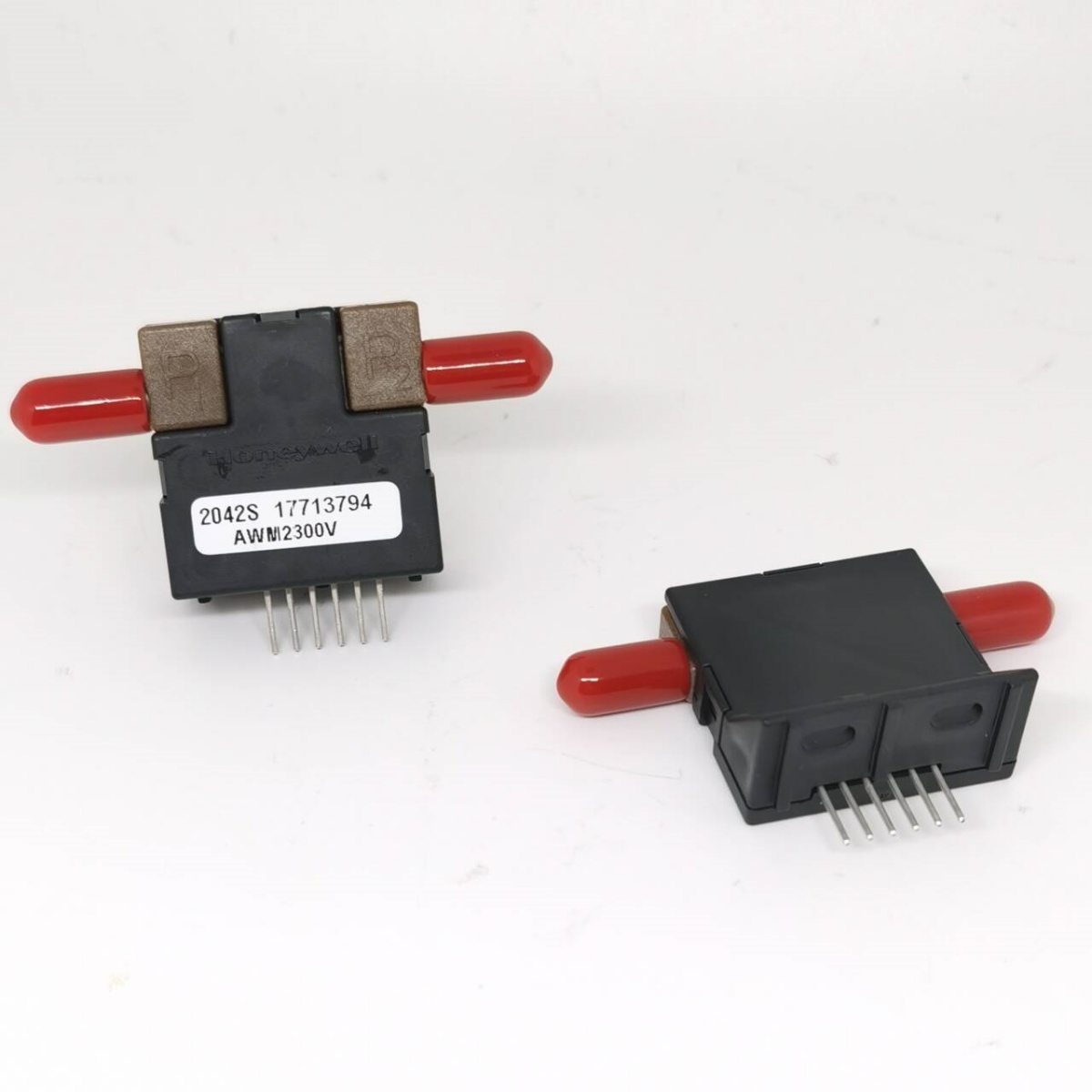

The Honeywell AWM2300V is an unamplified microbridge thermal mass gas flow sensor from the AWM2000 Series. Utilizing specialized silicon MEMS technology, it senses gas flow via thermal transfer, ensuring excellent repeatability, extremely low pressure drop, and exceptional responsiveness for clean, dry gas applications.
Key Features
- Sensor Type: Unamplified Mass Gas Flow Sensor
- Flow Range: 0 to 1000 SCCM (Standard Cubic Centimeters per Minute)
- Output Signal: 55 mV ±5.0 mVdc (at 1000 SCCM full scale)
- Response Time: 1.0 ms typical / 3.0 ms maximum
- Port Configuration: 5.08 mm (0.2 inch) male plastic ports
- Operating Voltage: 8.0 Vdc to 15.0 Vdc (10.0 Vdc recommended)
- Power Consumption: 30 mW typical low power requirement
- Operating Temperature: -25 to 85 degrees Celsius
Applications
- Medical Equipment: Oxygen concentrators, sleep apnea monitors, anesthesia devices, and medical ventilators.
- Industrial Applications: Gas chromatography, leak detection systems, environmental analysis, and process gas control.
