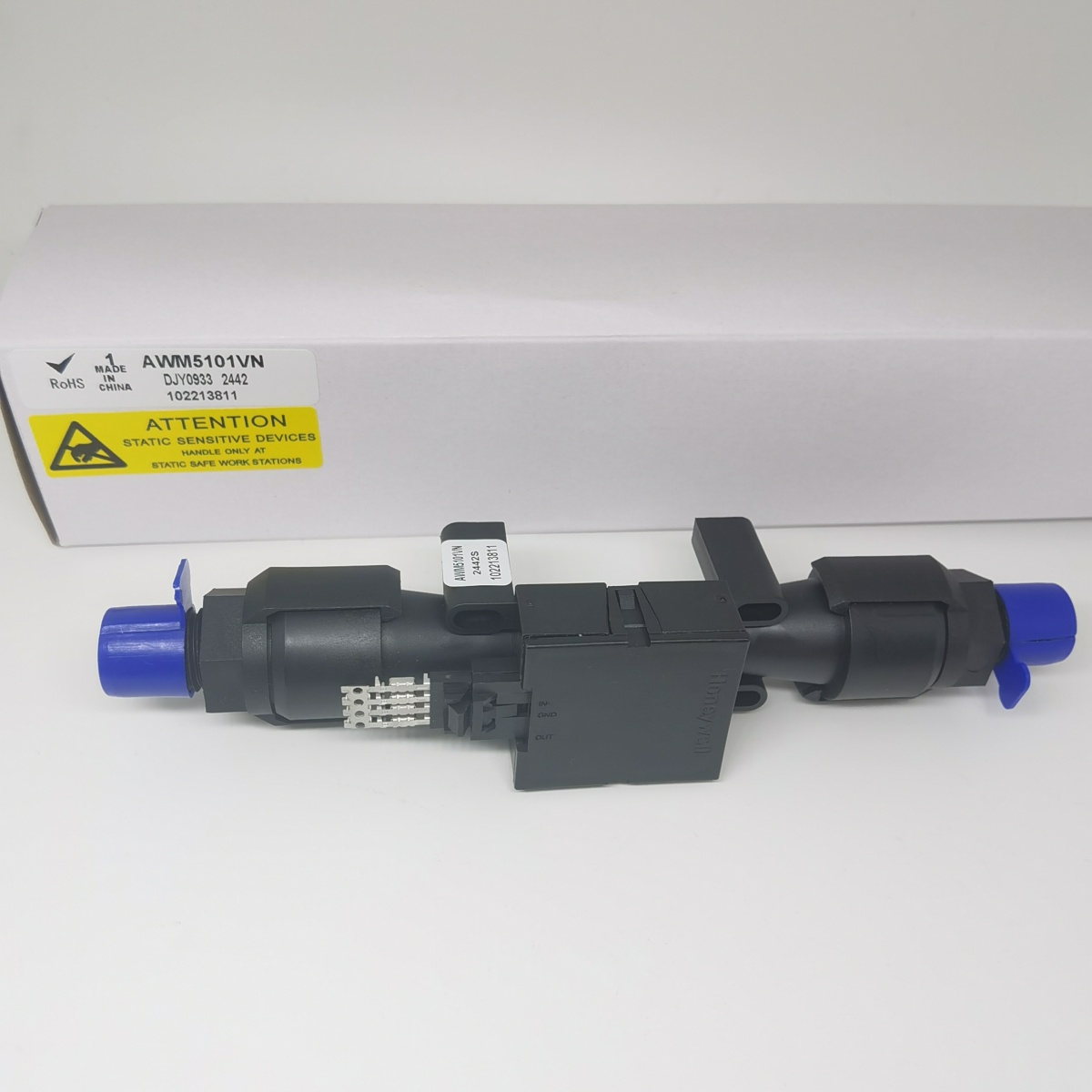

Honeywell AWM5101VN Gas Mass Flow Sensor

The Honeywell AWM5101VN is an amplified, temperature compensated microbridge mass gas flow sensor with a venturi housing. Featuring a 0 to 5 SLPM range, a reliable 1V to 5V linear voltage output, and a durable 1/4 inch NPT threaded port, it provides high accuracy and clogging resistance for medical and industrial applications.

分类： 品牌：
Get a Quote
The Honeywell AWM5101VN is a high performance microbridge mass airflow sensor from the AWM5000 Series. It features a specialized venturi type flow housing that directs the gas stream over the MEMS sensing chip. This design ensures exceptional repeatability and drastically reduces error possibilities caused by bypass clogging.
Key Features
  • Sensor Type: Amplified and Linearized Mass Flow Sensor
  • Flow Range: 0 to 5.0 SLPM (Standard Liters per Minute)
  • Output Signal: 1.0 Vdc to 5.0 Vdc linear analog voltage
  • Port Configuration: 1/4 inch minus 18 NPT male threaded ports
  • Operating Voltage: 8.0 Vdc to 15.0 Vdc
  • Power Consumption: 100 mW maximum low power requirement
  • Response Time: 60 ms maximum response time
  • Calibration Medium: Active laser trimmed calibration for Nitrogen and dry gases
  • Operating Temperature: minus 20 to 70 degrees Celsius
