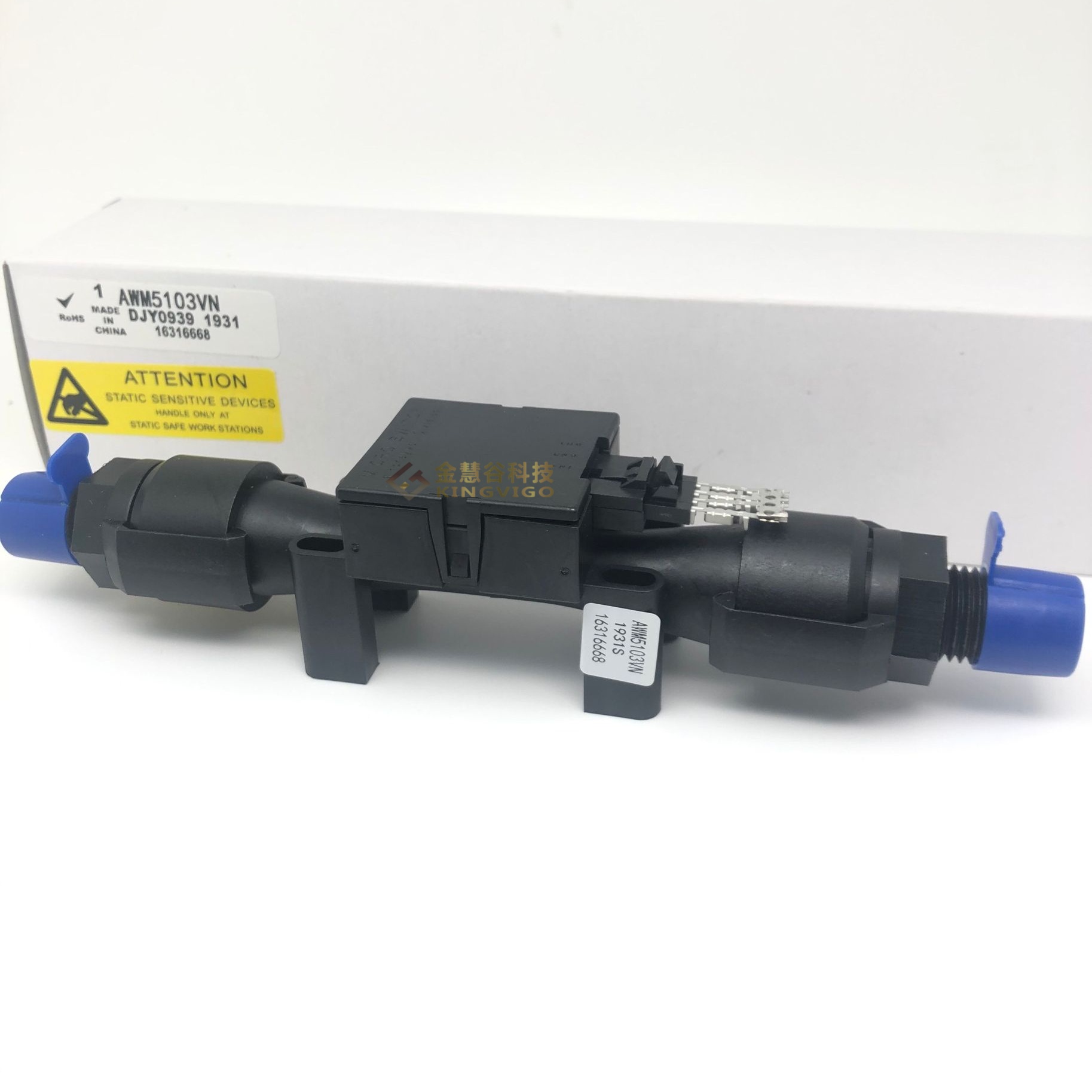

The Honeywell AWM5103VN is a high performance microbridge mass airflow sensor from the AWM5000 Series. It features a specialized venturi type flow housing that directs the gas stream over the MEMS sensing chip. This design ensures exceptional repeatability and drastically reduces error possibilities caused by bypass clogging.
Key Features
-
- Sensor Type: Amplified and Linearized Mass Flow Sensor
- Flow Range: 0 to 15.0 SLPM
- Output Signal: 1.0 Vdc to 5.0 Vdc linear analog voltage
- Port Configuration: 1/4 inch NPT male threaded ports
- Operating Voltage: 8.0 Vdc to 15.0 Vdc
- Power Consumption: 100 mW maximum low power requirement
- Response Time: 60 ms maximum response time
- Calibration Medium: Active laser trimmed calibration for Nitrogen and dry gases
- Operating Temperature: minus 20 to 70 degrees Celsius
Applications
-
- Medical Equipment: Respiratory therapy devices, oxygen concentrators, and anesthesia systems.
- Industrial Controls: Process gas monitoring, environmental analyzers, fuel cell control, and leak detection systems.
